Adjusting Wing Stabilizer Wheel-Not Available for Rigid Machine

Wing stabilizer wheels aid in regulating depth on wing sections.

1. Use ratchet (A) to make preliminary stabilizer wheel height adjustment. Raise wheel so it does not contact ground.

2. Make depth, fore-and-aft, and side-to-side leveling adjustments on machine as necessary.

3. Operate machine at desired working depth. Stop with machine in ground.

4. Raise machine slightly and lower stabilizer wheel to ground using ratchet. Attach ratchet at this depth.

5. Wing stabilizer wheel will now carry a portion of wing weight. wing stabilizer may be adjusted up or down as desired.

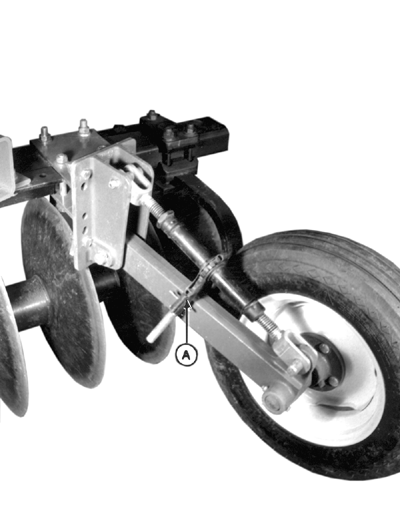

A-Ratchet

N42181WR

NX,M63730,AH -19-09JUN98-1/1
