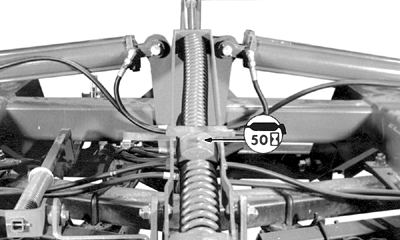

Lubricate Leveling Adjustment Spring Retainer

On machines with hydraulic leveling control, use a high temperature grease while rotating rod or brush grease on entire length of rod/threads. If hydraulic leveling control is used often, lubricate retainer more frequently. Lubricate washer between nut and spring retainer.

NX,M63740,AL -19-09JUN98-1/1
