OMN300481: 637 Regular, Rock, BlackLand, and WheatLand Disks(N06370X004000- ), Block File: NX_M63755_BB_19

Install Front Stabilizer Wheels

NOTE: Position angle brackets as close to end of front wing gang as possible.

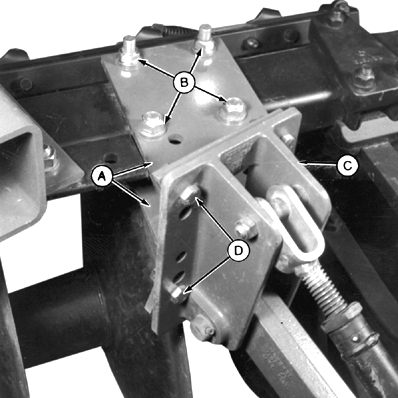

1. Loosely attach angle brackets (A) with 3/4 x 6 in. cap screws, eight hard washers, nuts (B).

2. Attach stabilizer arm package (C) to front of angle brackets with 1/2 x 1-3/4 in. cap screws (D), washers, and nuts. Tighten to specification.

Specification

Hardware -Torque

110 N·m

(80 lb-ft)

A-Angle Brackets (2 Used)
B-Cap Screws, 3/4 x 6 In. and Nuts (4 Used) and Hard Washers (8 Used)
C-Stabilizer Arm Package
D-Cap Screws, 1/2 x 1-3/4 in., Washers and Nuts (4 Used)

NX,M63755,BB -19-09JUN98-1/3

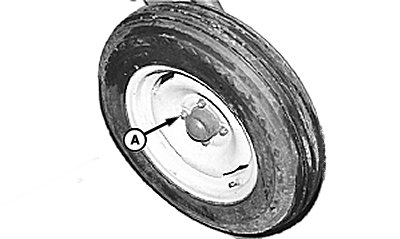

3. Attach wheel (5.90 x 15-4PR Tire) to hub using four round head bolts and hub nuts (A). Tighten nuts to specification.

Specification

Hub Nuts -Torque

115 N·m

(85 lb-ft)

4. Inflate tires to specification.

Specification

(5.90 x 15-4PR Tire) -Pressure

248 kPa

(2.48 bar)

(36 psi)

5. Align stabilizer wheel so it is straight with direction of travel.

NX,M63755,BB -19-09JUN98-2/3

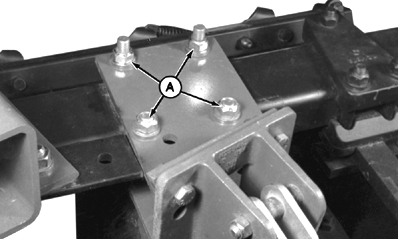

6. Tighten 3/4 x 5 in. cap screws (A) to specification.

Specification

Cap Screws -Torque

271 N·m

(200 lb-ft)

A-Cap Screws, 3/4 x 5 in.
