Using Warning Lights and SMV Emblem

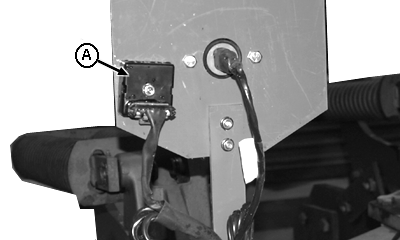

Amber warning lights should be installed at widest points of machine. Red tail lamps should be located at rear of combined machines. For maximum machine visibility, be sure amber warning lights and red tail lights, reflectors and SMV emblem are clean. NOTE: Lighting enhancement module is attached to rear side of left-hand red warning light bracket. A lighting enhancement module (A) has been incorporated in this machine's lighting circuit. This module causes red tail lights to function as turn signals. During normal operation, both amber warning lights will flash in unison at high intensity, and both red tail lamps will illuminate steady at low intensity. When a turn is signaled, red tail lamp in direction of turn will flash at high intensity and in unison with amber warning lamp. opposite side amber and red lamps will illuminate steady at high intensity. |
|
CAUTION:
When transporting machine on a road or highway at night or during day, use accessory lights and devices for adequate warning to operators of other vehicles. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.
NX,WARNL,1A1 -19-16MAR99-1/1 |
