Determining Tractor Requirements

1. (See RECOMMENDED TRACTORS in Specifications section.)

2. Install adapters, if tractor does not have ISO hydraulic couplers. (See your John Deere dealer.)

NOTE: Roman numerals (I, II, III, IV, V) designate coupler as it corresponds to button on SCV that is located in tractor cab.

N42181LU

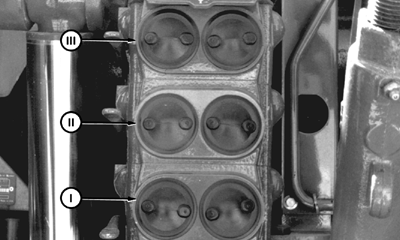

John Deere 7000 Series Tractors

N48100

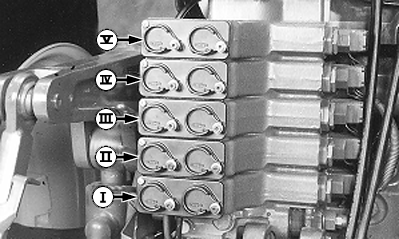

John Deere 8000/9000/8020/9020 Series Tractors

OUO6050,00000DD -19-05MAR02-1/2

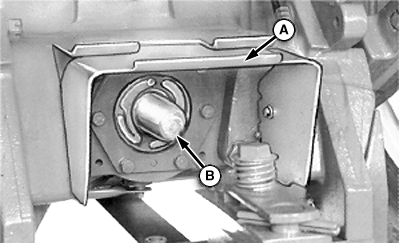

causym CAUTION: Entanglement in rotating driveline can cause serious injury or death to you or others. Keep tractor master shield (A) and driveline guard (B) in place at all times.

3. Consult tractor operator's manual for specific adjustment procedures, tire inflation, wheel spacing, and ballast requirements.


A-Master Shield
B-Driveline Guard

RW5854

OUO6050,00000DD -19-05MAR02-2/2
