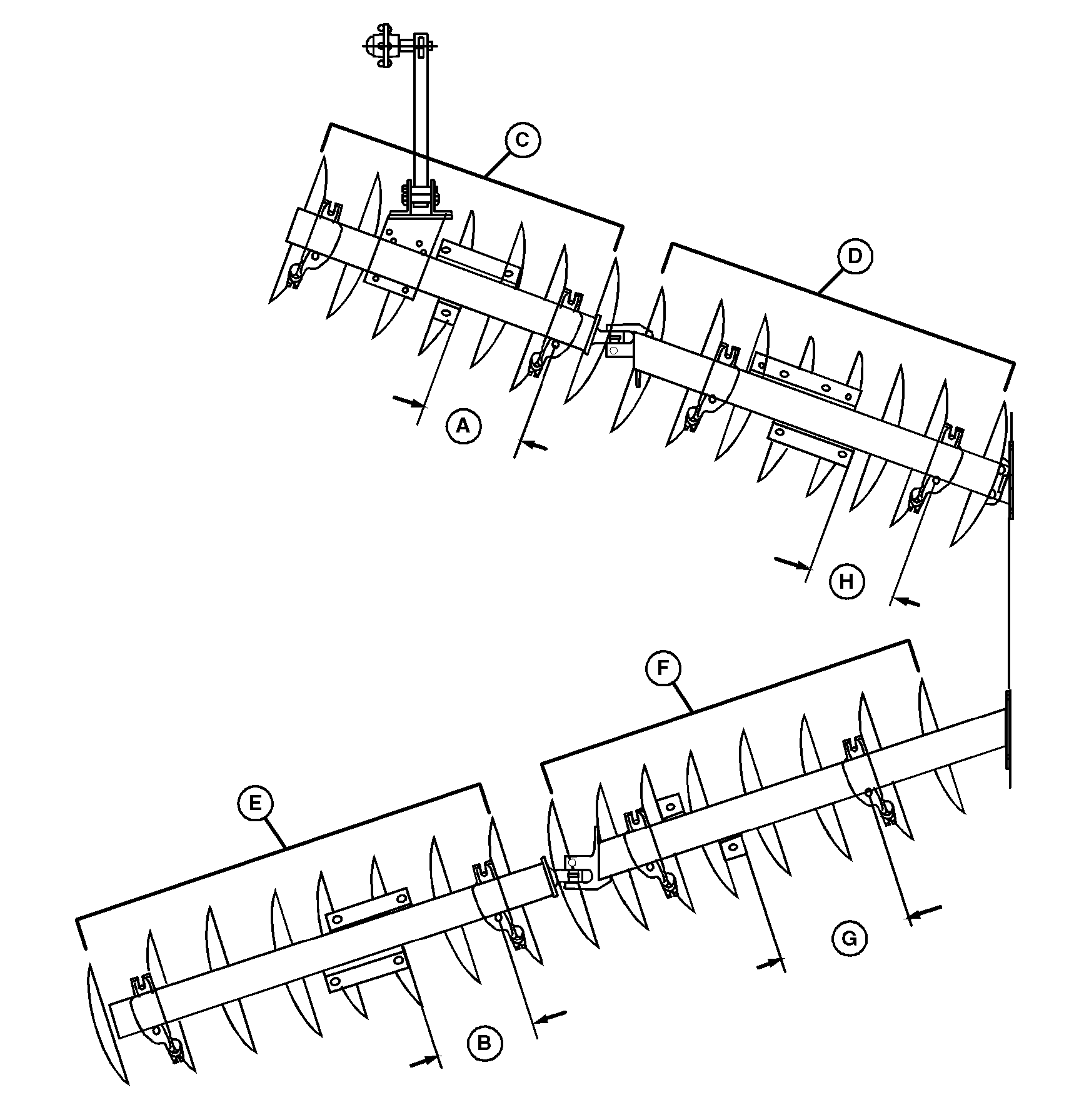

Narrow, 5.6 M (18 Ft 3 In.), 184 mm (7-1/4 In.) Spacing, Rigid Standard

N59901


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-7 Blade Gang
D-8 Blade Gang


E-8 Blade Gang
F-8 Blade Gang


G-395 mm (15.54 in.)
H-357 mm (14.06 in.)

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 390 (15.35) 260 (10.25)
610 x 5004 (24 x 197) 390 (15.35) 260 (10.25)
559 x 6502 (22 x 256) 377 (14.85) N/A
610 x 6502 (24 x 256) 377 (14.85) N/A



OUO6061,00014A8 -19-22MAR02-1/1
