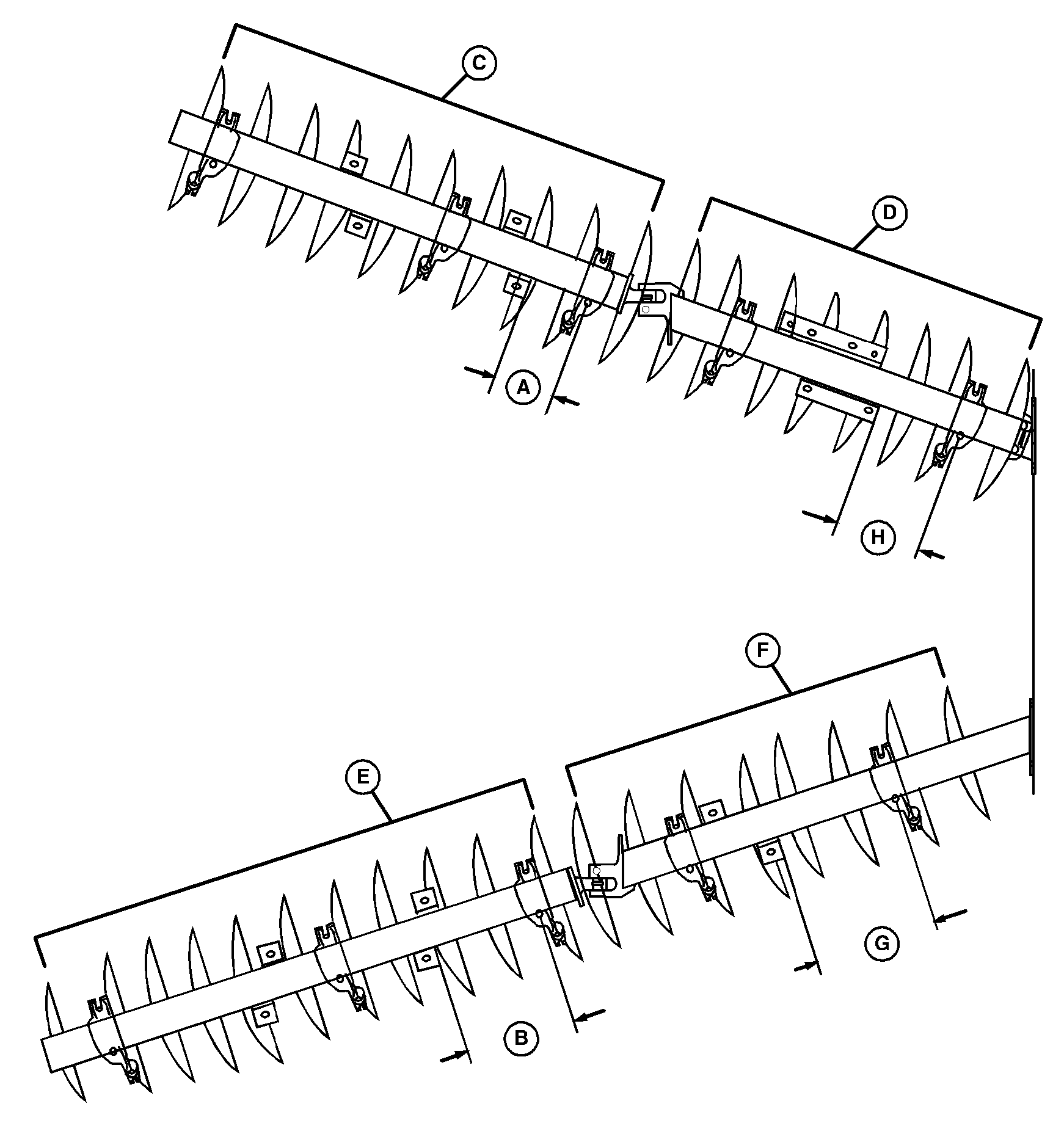

Narrow, 6.6 M (21 Ft 9 In.), 184 mm (7-1/4 In.) Spacing, Rigid Standard

N59905


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-10 Blade Gang
D-8 Blade Gang


E-11 Blade Gang
F-8 Blade Gang


G-395 mm (15.54 in.)
H-357 mm (14.06 in.)

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 244 (9.6) 348 (13.70)
610 x 5004 (24 x 197) 244 (9.6) 348 (13.70)
559 x 6502 (22 x 256) 231 (9.1) N/A
610 x 6502 (24 x 256) 231 (9.1) N/A



OUO6061,00014AC -19-22MAR02-1/1
