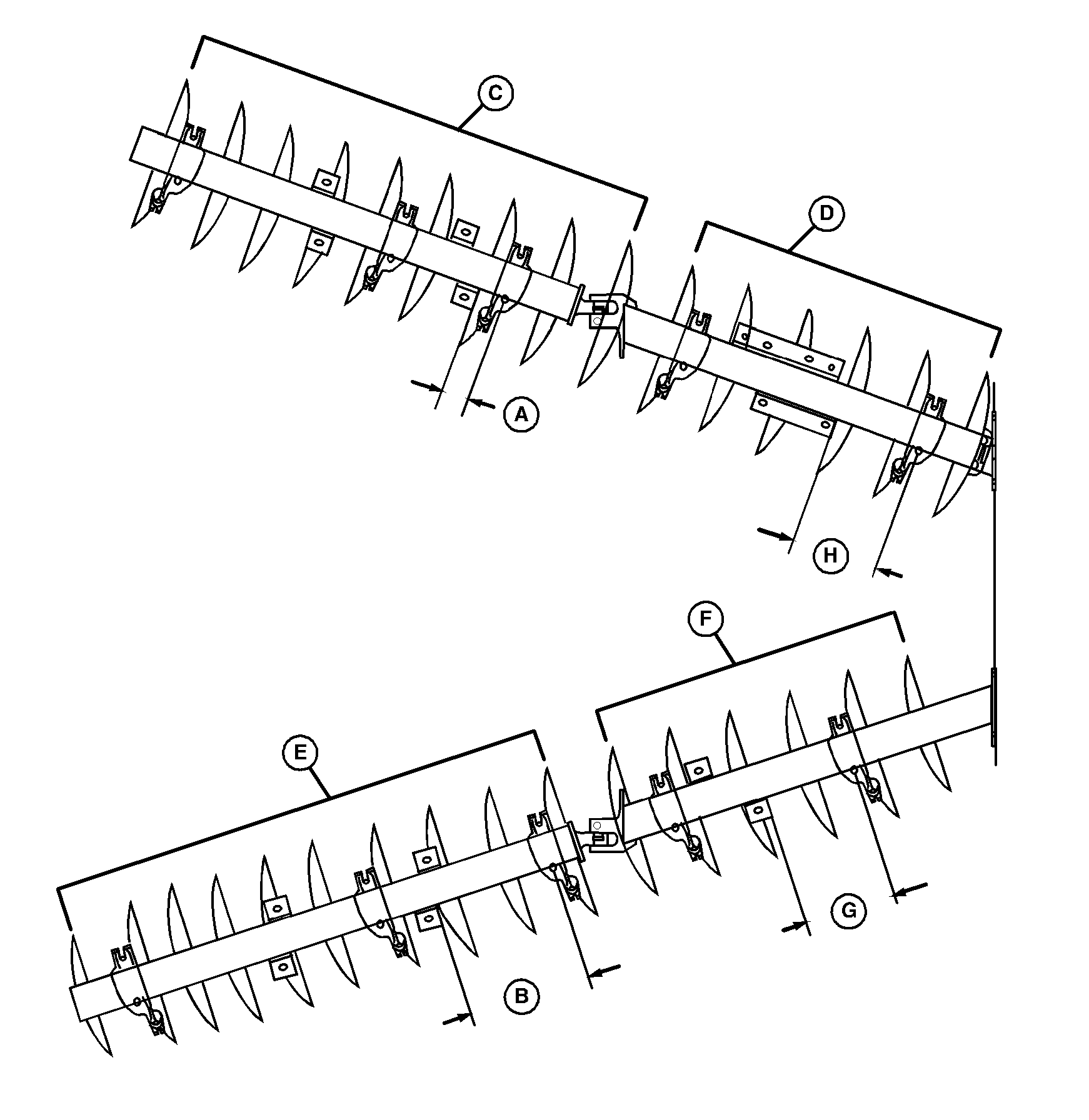

Narrow, 6.8 M (22 Ft 2 In.), 229 mm (9 In.) Spacing, Rigid Standard

N59906


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-9 Blade Gang
D-6 Blade Gang


E-10 Blade Gang
F-6 Blade Gang


G-332 mm (13.08 in.)
H-315 mm (12.41 in.)

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 94 (3.7) 446 (17.55)
610 x 5004 (24 x 197) 94 (3.7) 446 (17.55)
559 x 6502 (22 x 256) 85 (3.35) 438 (17.25)
610 x 6502 (24 x 256) 85 (3.35) 438 (17.25)



OUO6061,00014AD -19-22MAR02-1/1
