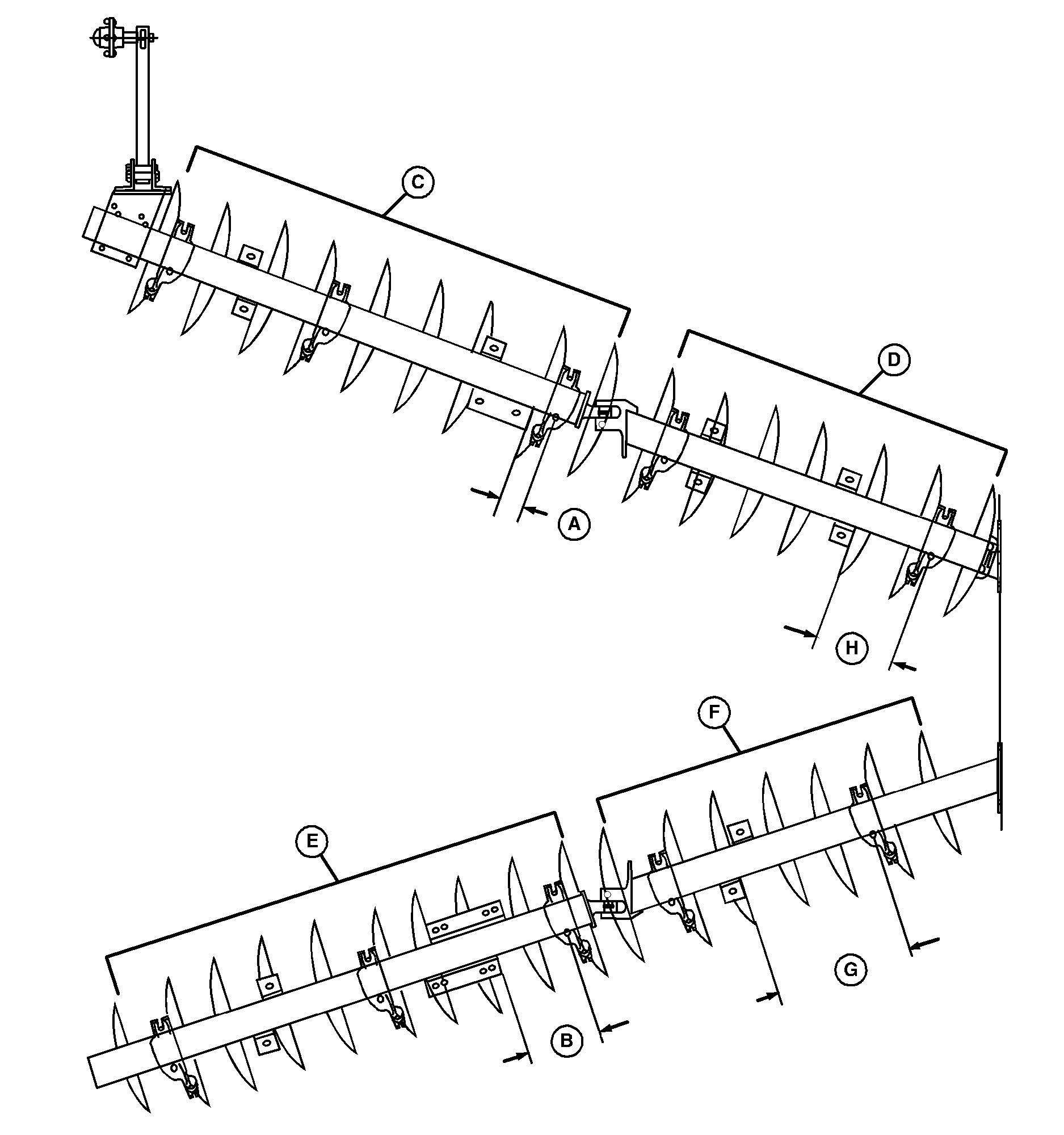

Medium, 7.2 M (23 Ft 7 In.), 229 mm (9 In.) Spacing, Rigid Standard

N59908


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-9 Blade Gang
D-7 Blade Gang


E-10 Blade Gang
F-7 Blade Gang


G-594 mm (23.38 in.)
H-306 mm (12.06 in.)

OUO6061,00014AF -19-22MAR02-1/2

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 83 (3.25) 326 (12.85)
610 x 5004 (24 x 197) 83 (3.25) 326 (12.85)
559 x 6502 (22 x 256) 66 (2.6) 307 (12.1)
610 x 6502 (24 x 256) 66 (2.6) 307 (12.1)



OUO6061,00014AF -19-22MAR02-2/2
