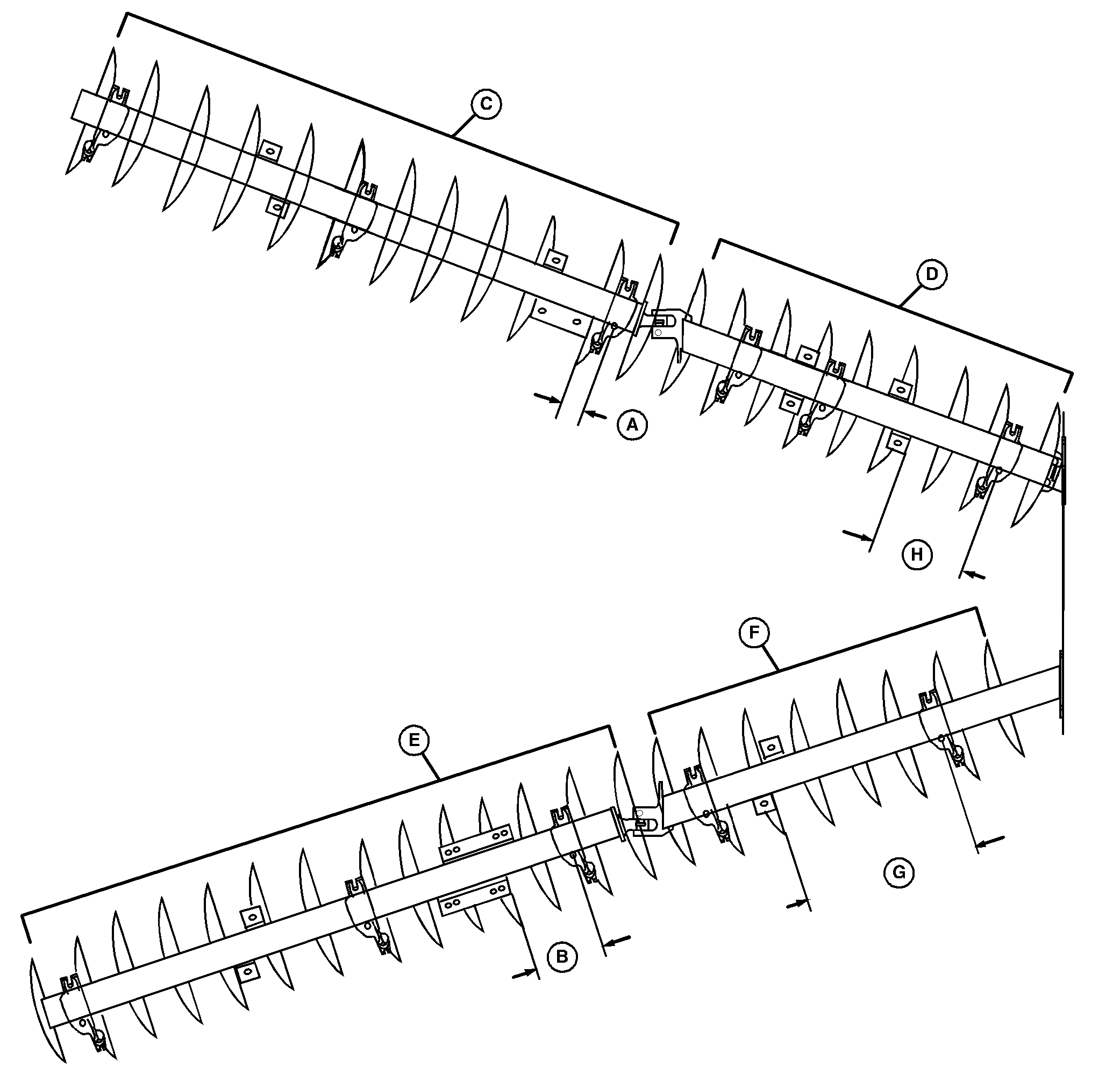

Medium, 7.6 M (25 Ft 1 In.), 184 mm (7-1/4 In.) Spacing, Rigid Standard

N59910


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-12 Blade Gang
D-9 Blade Gang


E-13 Blade Gang
F-9 Blade Gang


G-645 mm (25.38 in.)
H-333 mm (13.10 in.)

OUO6061,00014B1 -19-22MAR02-1/2

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 44 (1.75) 263 (10.35)
610 x 5004 (24 x 197) 44 (1.75) 263 (10.35)
559 x 6502 (22 x 256) 36 (1.4) N/A
610 x 6502 (24 x 256) 36 (1.4) N/A



OUO6061,00014B1 -19-22MAR02-2/2
