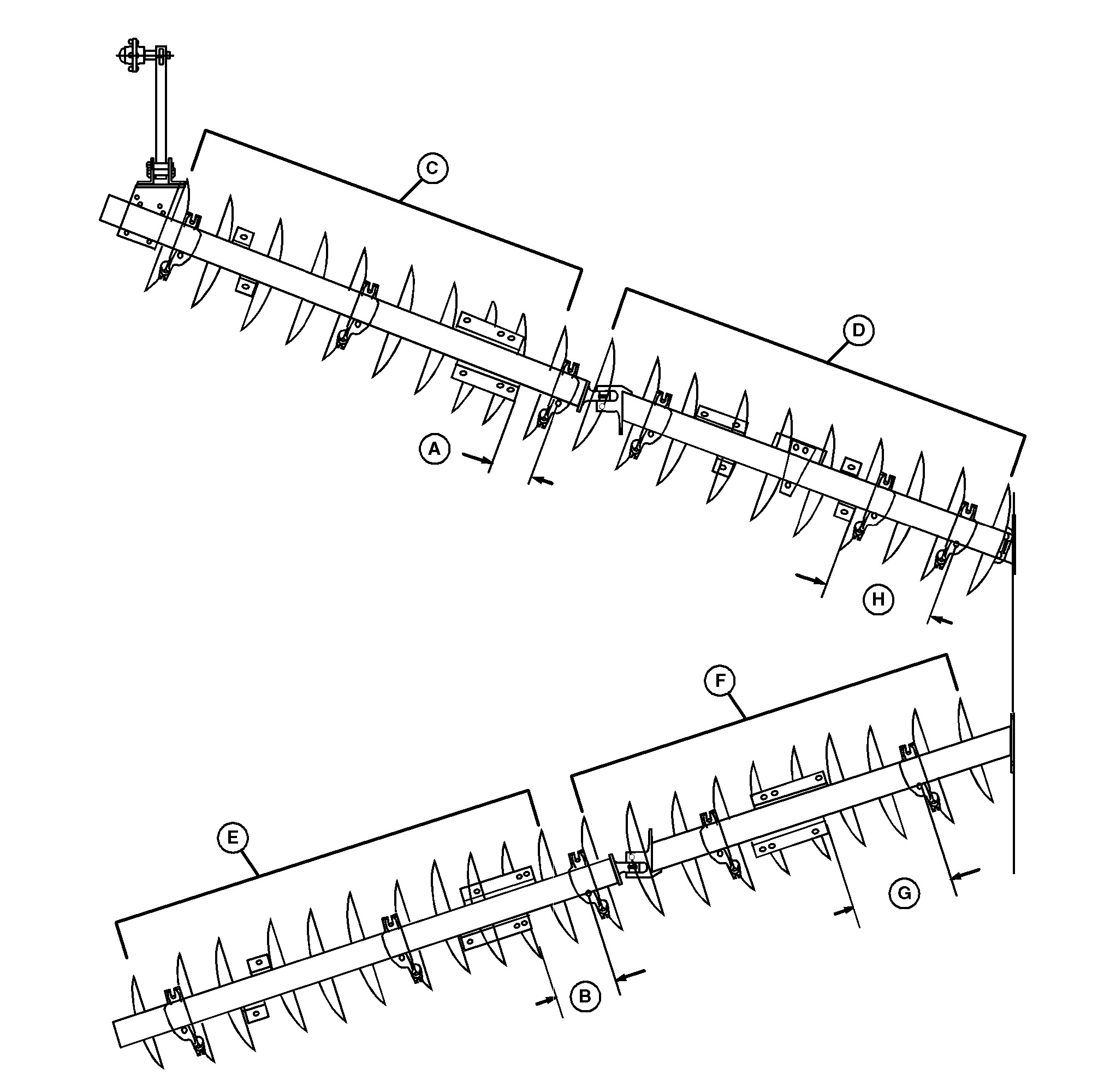

Wide, 8.9 M (29 Ft 3 In.), 229 mm (9 In.) Spacing, Rigid Standard

N59915


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-11 Blade Gang
D-9 Blade Gang


E-12 Blade Gang
F-9 Blade Gang


G-531 mm (20.9 in.)
H-528 mm (20.8 in.)

OUO6061,00014B6 -19-22MAR02-1/2

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 193 (7.6) 352 (13.85)
610 x 5004 (24 x 197) 188 (7.4) 347 (13.65)
559 x 6502 (22 x 256) 175 (6.9) 334 (13.15)
610 x 6502 (24 x 256) 175 (6.9) 334 (13.15)



OUO6061,00014B6 -19-22MAR02-2/2
