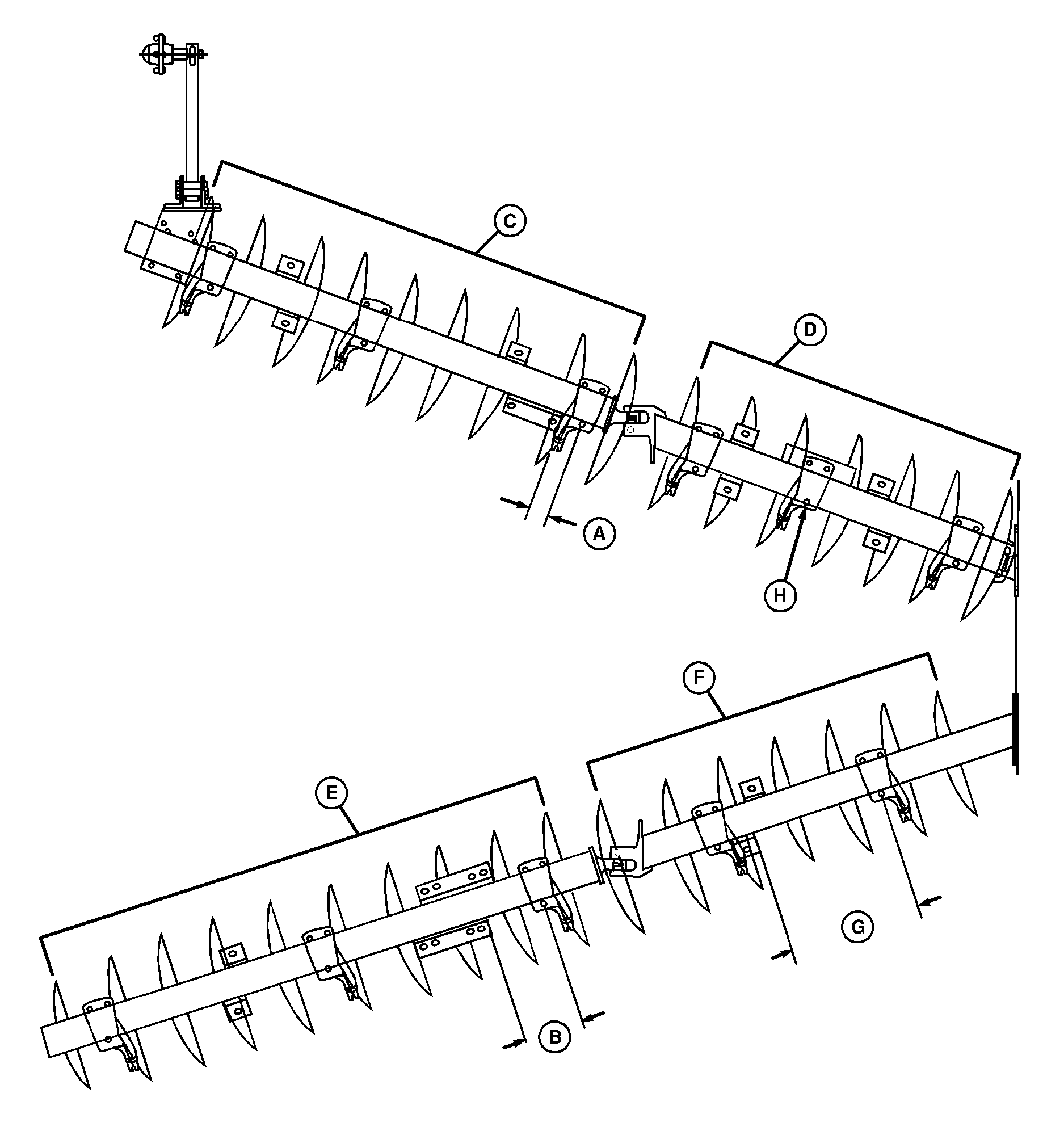

Medium, 7.2 M (23 Ft 7 In.), 229 mm (9 In.) Spacing, C-Spring Standard, Wheatland

N59909


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-9 Blade Gang
D-7 Blade Gang


E-10 Blade Gang
F-7 Blade Gang


G-545 mm (21.40 in.)
H-Attach First

OUO6061,00023DD -19-20SEP06-1/2

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
610 x 5004 (24 x 197) 91 (3.6) 258 (10.15)
  79 (3.1) 245 (9.65)
  79 (3.1) 245 (9.65)



OUO6061,00023DD -19-20SEP06-2/2
