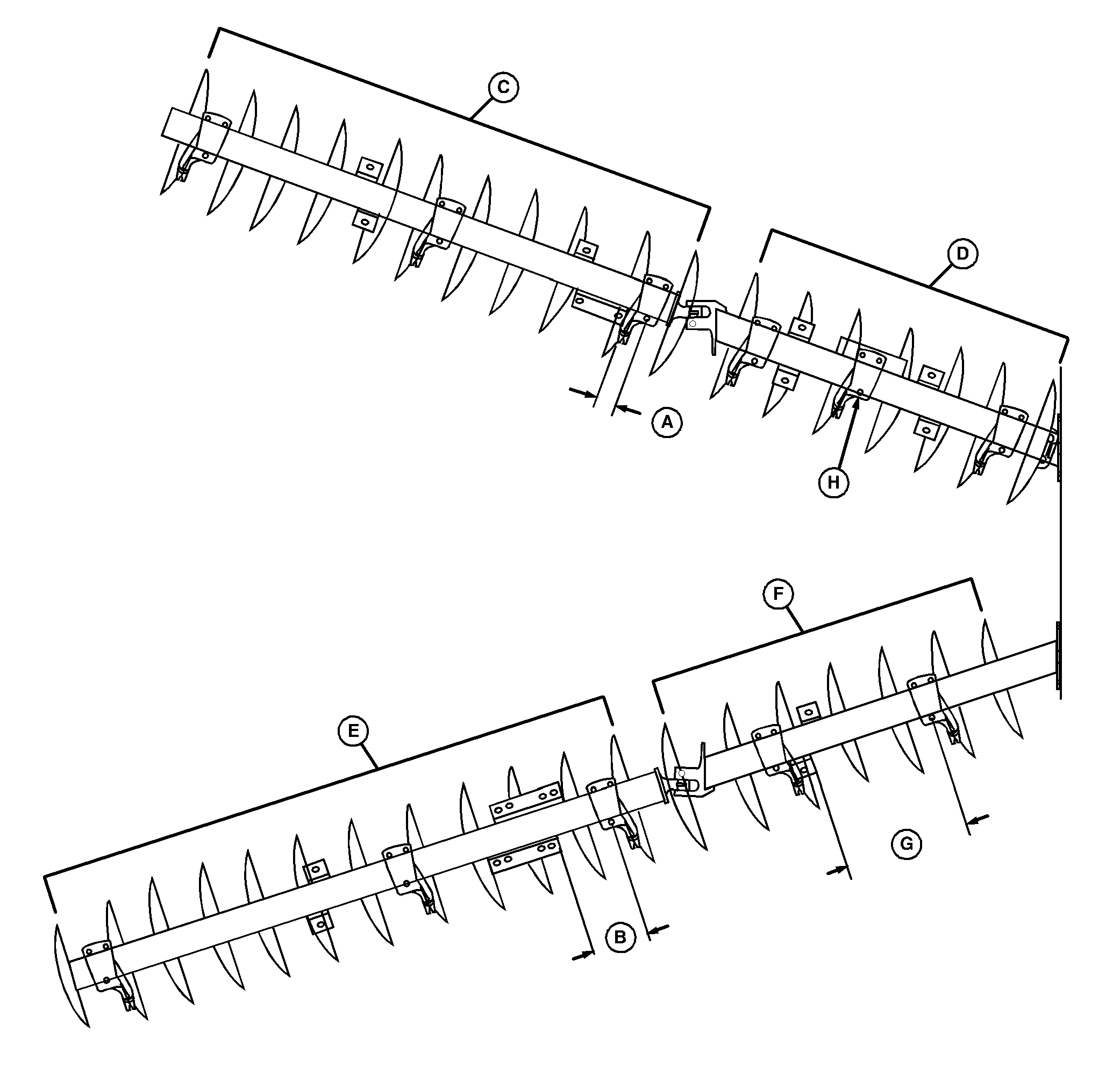

Medium, 8.1 M (26 Ft 5 In.), 229 mm (9 In.) Spacing, C-Spring Standard, Rock

N59912


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-11 Blade Gang
D-7 Blade Gang
E-12 Blade Gang


F-7 Blade Gang
G-519 mm (20.45 in.) 609 mm (24 in.) Rock Blade Only


H-Attach First

OUO6061,00023E6 -19-20SEP06-1/2

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 91 (3.6) 258 (10.15)
610 x 5004 (24 x 197) 91 (3.6) 258 (10.15)
559 x 6502 (22 x 256) 79 (3.1) 245 (9.65)
610 x 6502 (24 x 256) Rock (G) 79 (3.1) 219 (8.65)



OUO6061,00023E6 -19-20SEP06-2/2
