Wide, 8.9 M (29 Ft 3 In.), 229 mm (9 In.) Spacing, C-Spring Standard, Rock

N59916

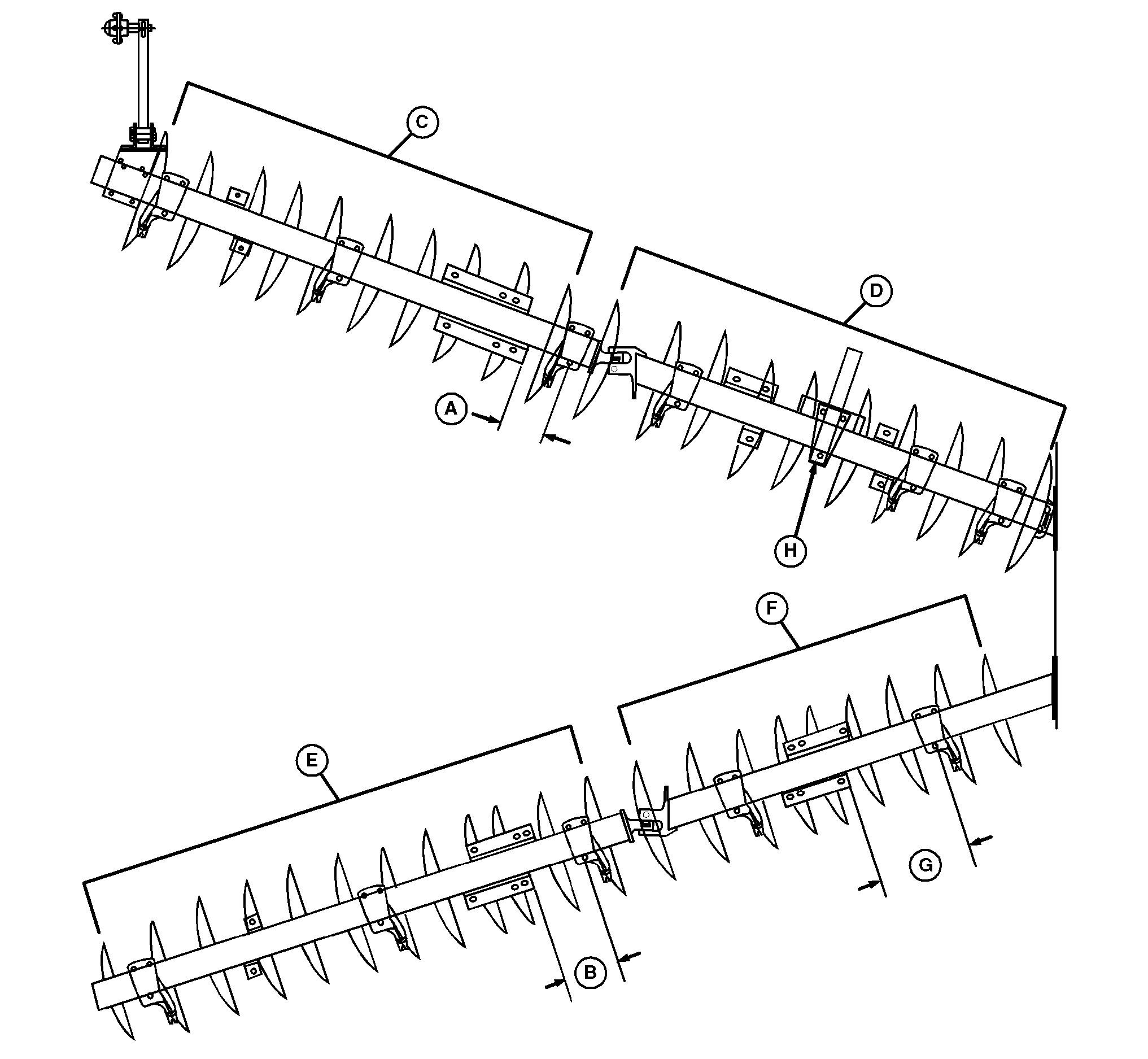

A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-11 Blade Gang
D-9 Blade Gang
E-12 Blade Gang


F-9 Blade Gang
G-495 mm (19-1/2 in.) 609 mm (24 in.) Rock Blade Only


H-Assemble First

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 198 (7.8) 302 (11.9)
610 x 5004 (24 x 197) 198 (7.8) 302 (11.9)
559 x 6502 x 22 x 256) 188 (7.4) 287 (11.3)
610 x 6502 (24 x 256) Rock (G) 188 (7.4) 261 (10.3)



OUO6061,00023E7 -19-05DEC06-1/1
