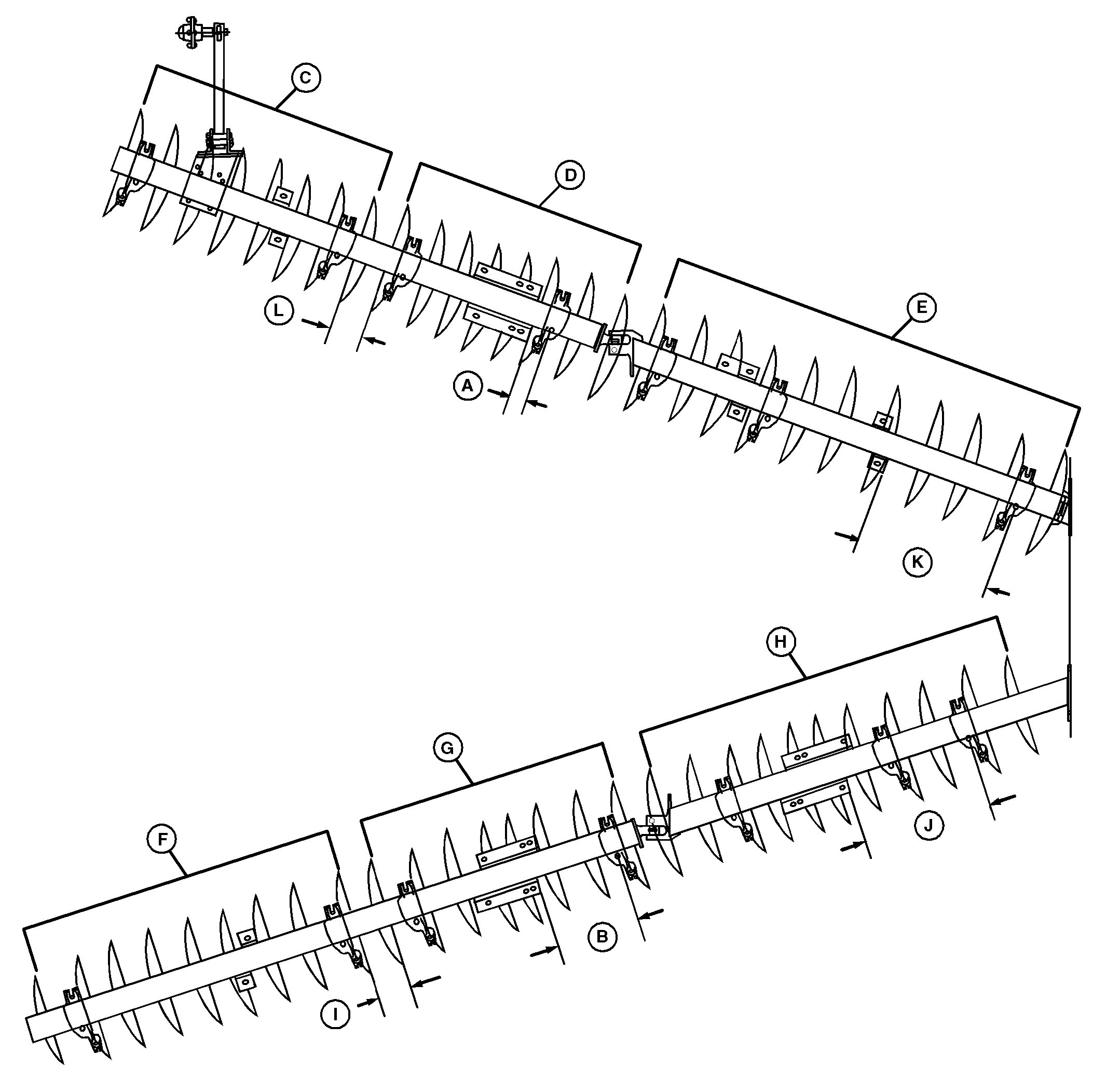

Wide, 9.8 M (32 Ft), 184 mm (7-1/4 In.) Spacing, Rigid Standard

N59918


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-8 Blade Gang
D-8 Blade Gang
E-11 Blade Gang
F-9 Blade Gang


G-8 Blade Gang
H-11 Blade Gang
I-184 mm (7.25 in.)


J-587 mm (23.10 in.)
K-569 mm (22.40 in.)
L-184 mm (7.25 in.)

OUO6061,000245C -19-16OCT06-1/2

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 76 (3.0) 382 (15.05)
610 x 5004 (24 x 197) 70 (2.75) 375 (14.75)
559 x 6502 (22 x 256) 53 (2.1) N/A
610 x 6502 (24 x 256) 53 (2.1) N/A



OUO6061,000245C -19-16OCT06-2/2
