Wide, 9.8 M (32 Ft 1 In.), 229 mm (9 In.) Spacing, C-Spring Standard, Wheatland

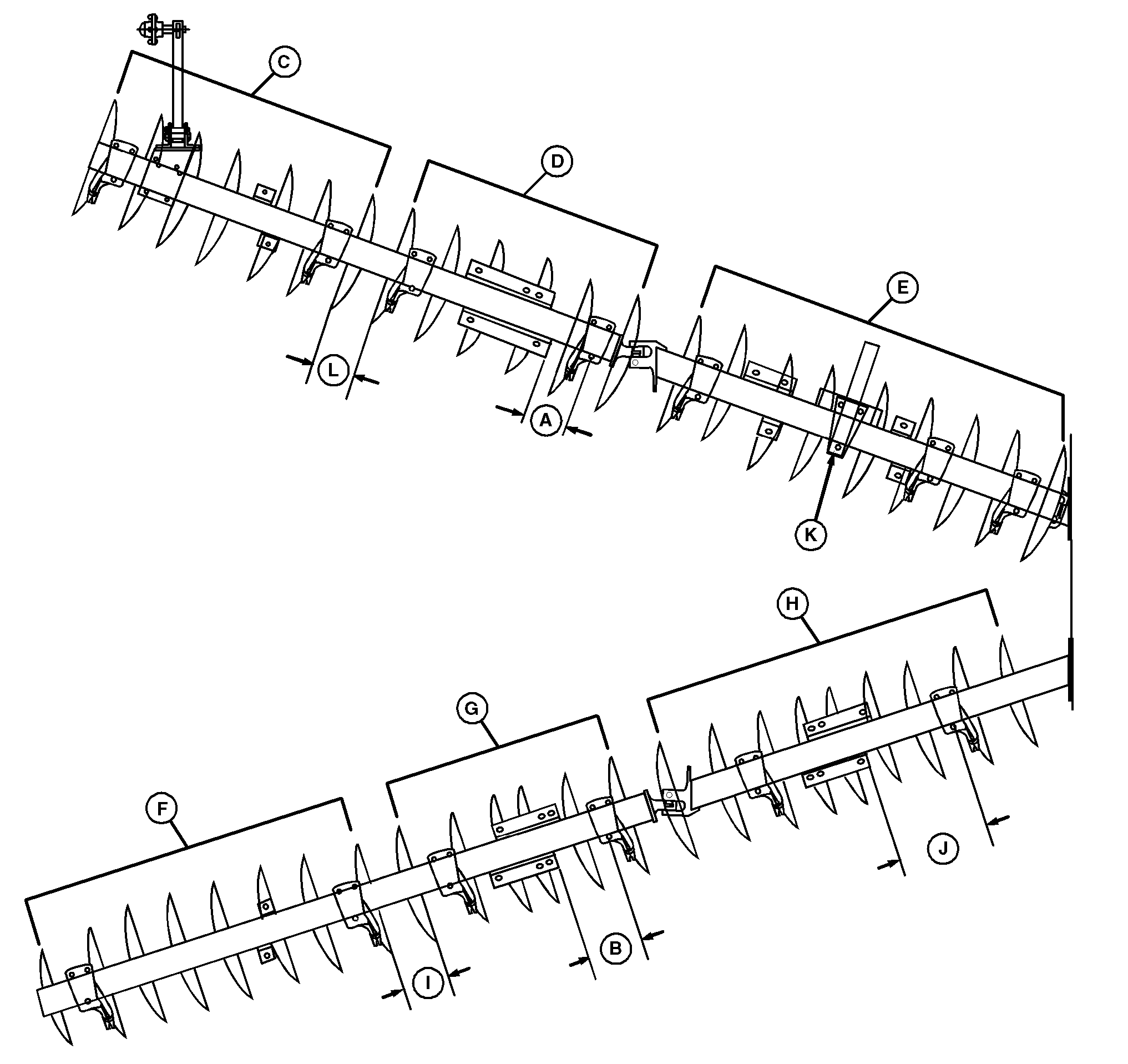

N59920


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-7 Blade Gang
D-6 Blade Gang
E-9 Blade Gang
F-8 Blade Gang


G-6 Blade Gang
H-9 Blade Gang
I-229 mm (9 in.)


J-495 mm (19.49 in.)
K-Assemble First
L-229 mm (9 in.)

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
610 x 5004 (24 x 197) 198 (7.8) 302 (11.9)
  188 (7.4) 287 (11.3)
  188 (7.4) 287 (11.3)



OUO6061,000245E -19-16OCT06-1/1
