OMN300481: 637 Regular, Rock, BlackLand, and WheatLand Disks(N06370X004000- ), Block File: OUO6061_000245F_19_16OCT06.htm

Narrow, 5.5 M (17 Ft 11 In.), 229 mm (9 In.) Spacing, Rigid Standard

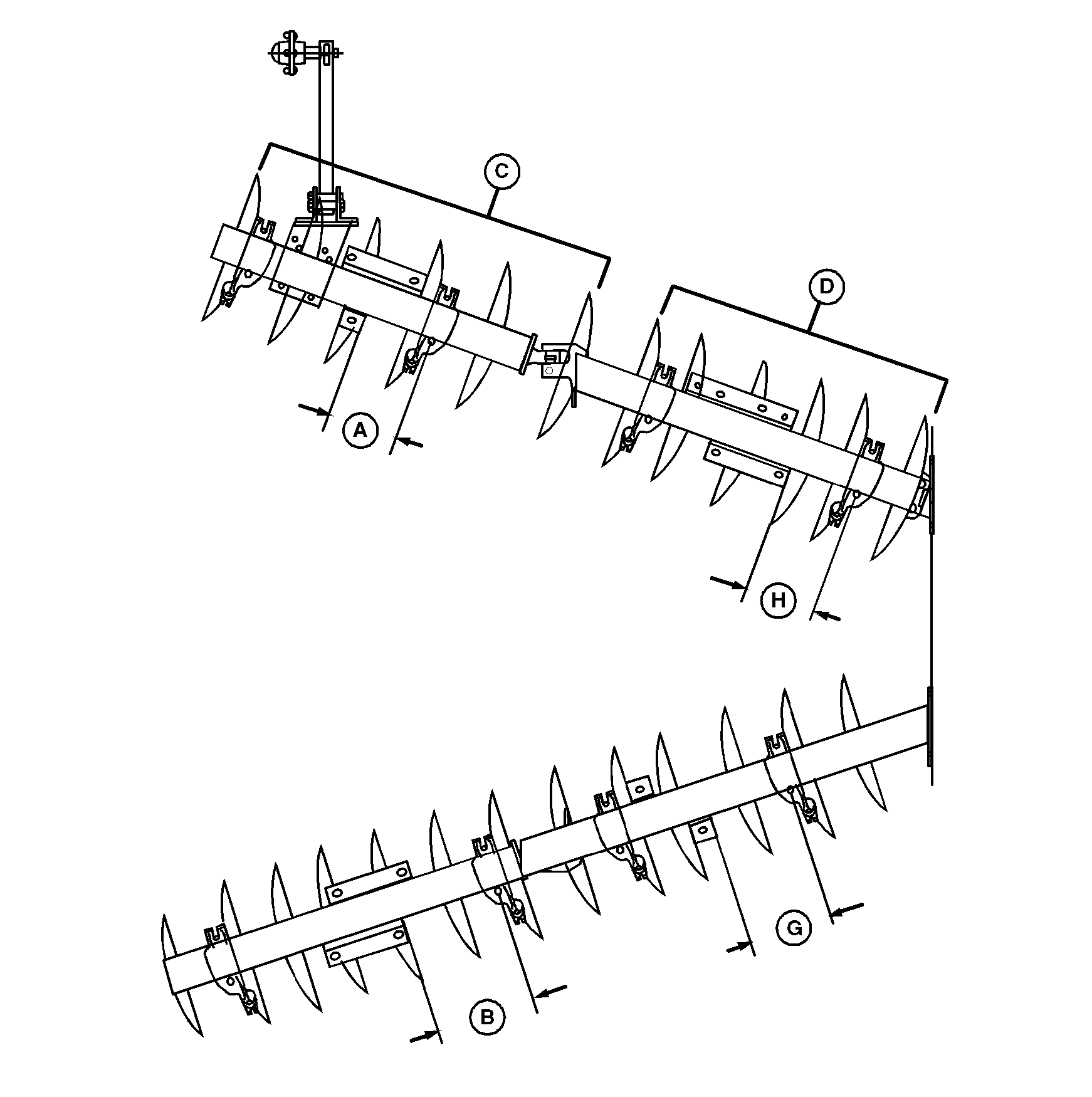

N59899

A-Width Dimension (See Chart)
B-Width Dimension (See Chart)

C-6 Blade Gang
D-6 Blade Gang

E-7 Blade Gang
F-6 Blade Gang

G-332 mm (13.08 in.)
H-315 mm (12.41 in.)

Blade mm (in.)	Dimension (A) mm (in.)	Dimension (B) mm (in.)
559 x 4496 (22 x 177)	237 (9.35)	359 (14.15)
610 x 5004 (24 x 197)	237 (9.35)	359 (14.15)
559 x 6502 (22 x 256)	230 (9.05)	351 (13.80)
610 x 6502 (24 x 256)	230 (9.05)	351 (13.80)

OUO6061,000245F -19-16OCT06-1/1
