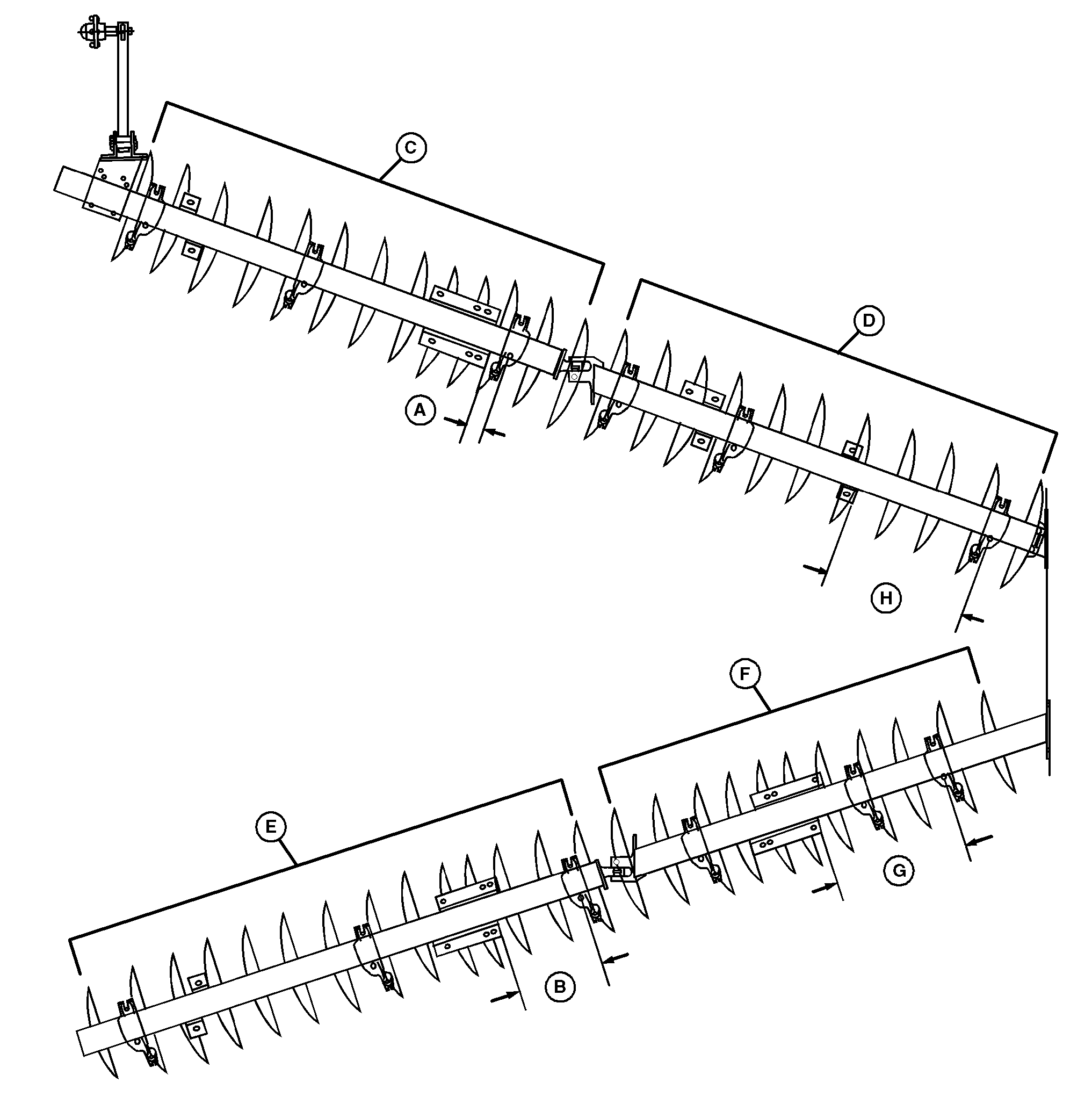

Wide, 8.7 M (28 Ft 7 In.), 184 mm (7-1/4 In.) Spacing, Rigid Standard

N59914


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-13 Blade Gang
D-11 Blade Gang


E-14 Blade Gang
F-11 Blade Gang


G-587 mm (23.10 in.)
H-569 mm (22.40 in.)

OUO6061,0002461 -19-16OCT06-1/2

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496 (22 x 177) 76 (3.0) 382 (15.05)
610 x 5004 (24 x 197) 70 (2.75) 375 (14.75)
559 x 6502 (22 x 256) 53 (2.1) N/A
610 x 6502 (24 x 256) 53 (2.1) N/A



OUO6061,0002461 -19-16OCT06-2/2
