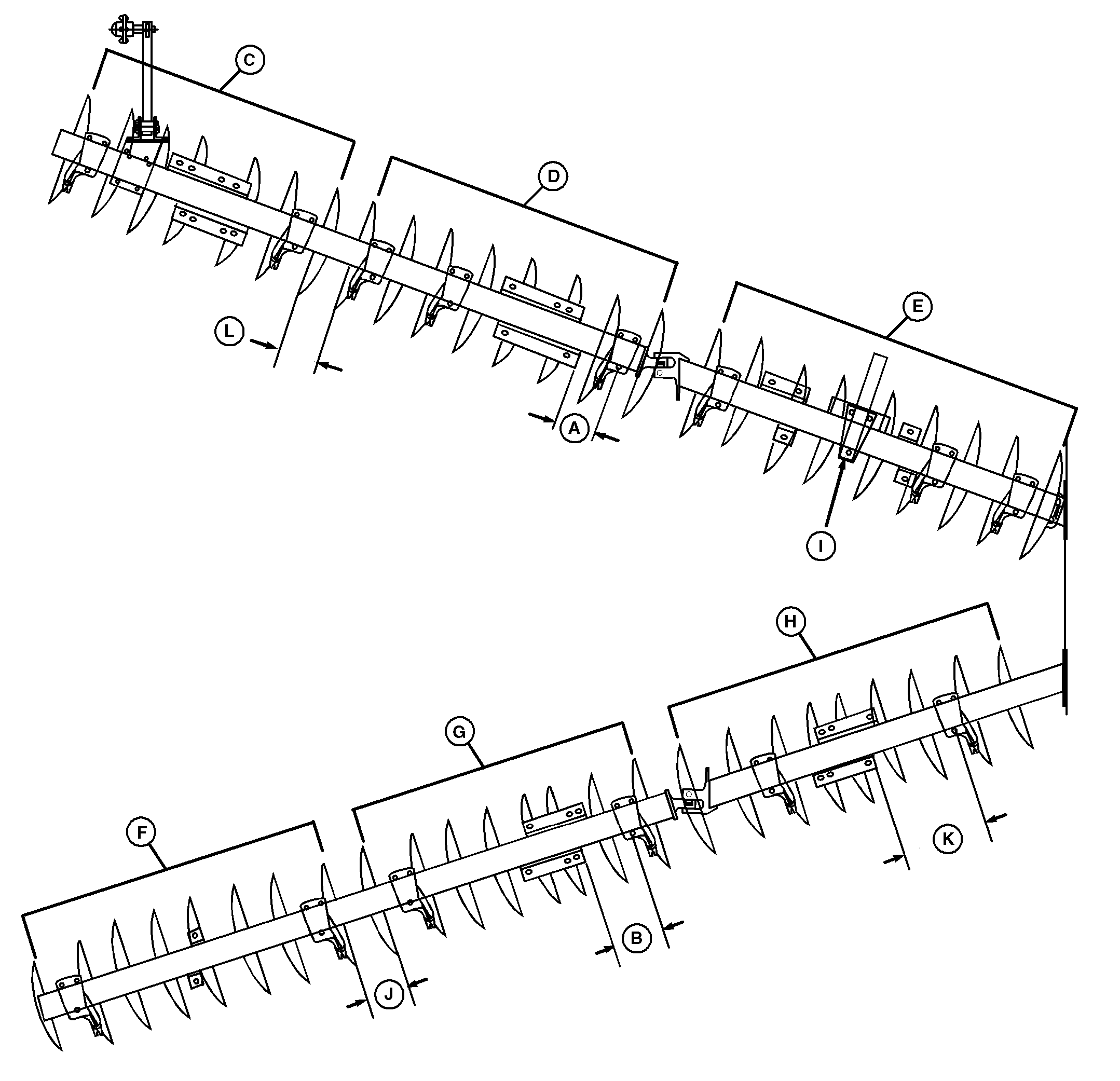

Wide, 10.6 M (35 Ft), 229 mm (9 In.) Spacing, C-Spring Standard, Rock

N59922


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-7 Blade Gang
D-8 Blade Gang
E-9 Blade Gang
F-8 Blade Gang


G-8 Blade Gang
H-9 Blade Gang
I-Assemble First
J-229 mm (9 in.)


K-469 mm (18.49 in.) 609 mm (24 in.) Rock Blade Only
L-229 mm (9 in.)

OUO6061,0002464 -19-17OCT06-1/2

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
559 x 4496
(22 x 177)		 198 (7.8) 302 (11.9)
610 x 5004
(24 x 197)		 198 (7.8) 302 (11.9)
559 x 6502
(22 x 256)		 188 (7.4) 287 (11.3)
610 x 6502
(24 x 256) Rock (K)		 188 (7.4) 261 (10.3)
