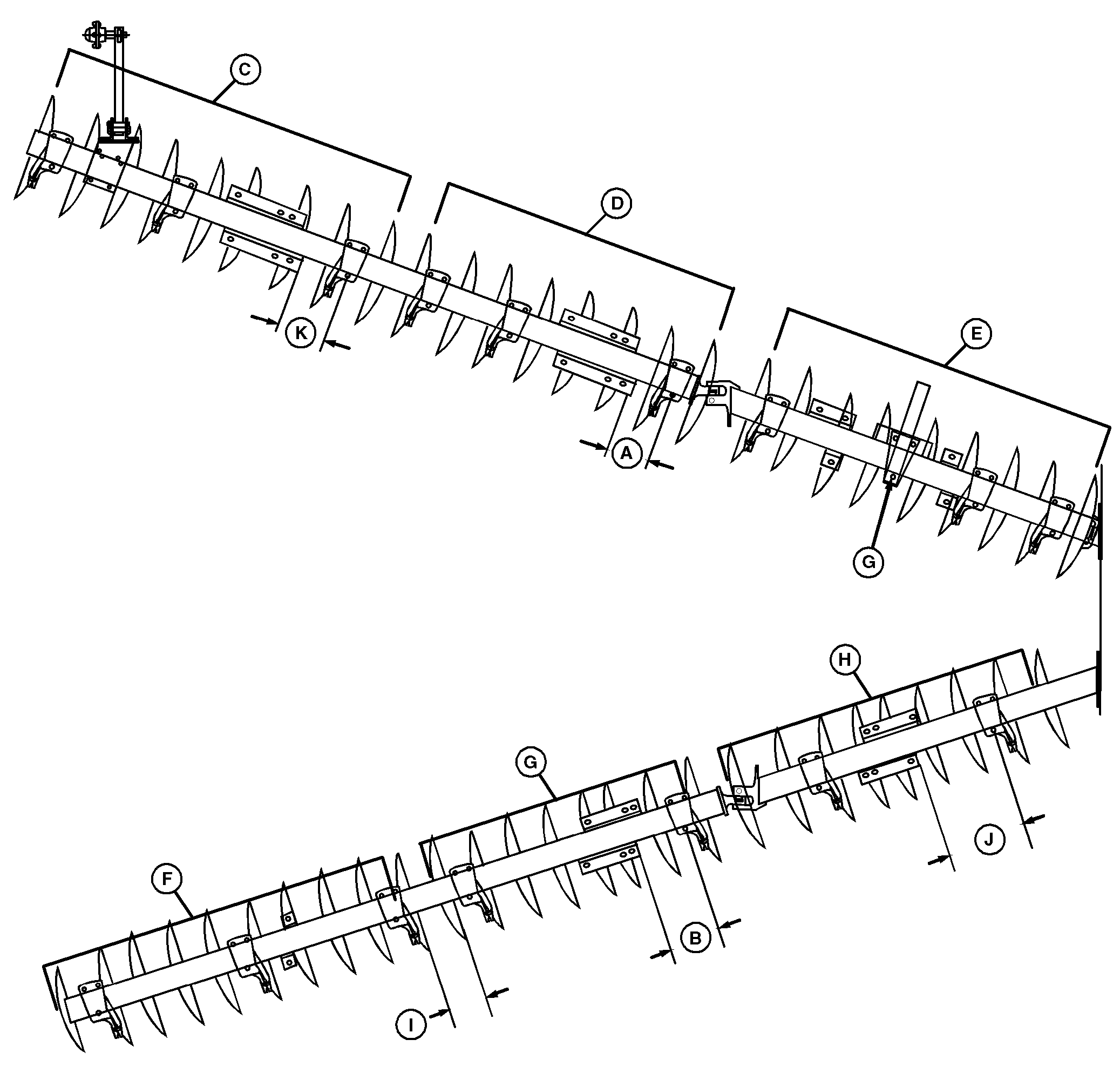

Wide, 11.5 M (37 Ft 10 In.), 229 mm (9 In.) Spacing, C-Spring Standard, Wheatland

N59926


A-Width Dimension (See Chart)
B-Width Dimension (See Chart)


C-9 Blade Gang
D-8 Blade Gang
E-9 Blade Gang


F-10 Blade Gang
G-8 Blade Gang
H-9 Blade Gang


I-229 mm (9 in.)
J-495 mm (19.50 in.)
K-229 mm (9 in.)

Blade
mm (in.)		 Dimension (A)
mm (in.)		 Dimension (B)
mm (in.)
610 x 5004 (24 x 197) 198 (7.8) 302 (11.9)
  188 (7.4) 287 (11.3)



OUO6061,0002467 -19-16OCT06-1/1
