Bleeding Transfer Pump

If chime sounds and row units are not receiving lubricant, bleed transfer pump located in front of fuel, water, and grease tanks. To bleed:

1. Unlatch and lower bottom engine door (A), located above and in front of rear axle.

2. Open transfer pump bleed screw (B).

3. Operate Unit Lubrication System. Verify grease is coming out of the bleed screw. If grease is dispersed, continue to step 4. (See Lubrication System in the Troubleshooting section if grease is not dispersed from bleed screw).

4. Close bleed screw.

5. Close bottom engine door.

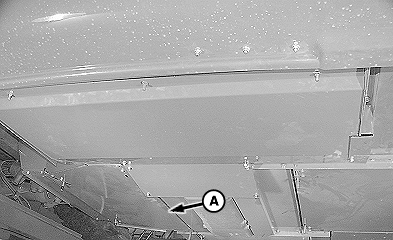

A-Bottom Engine Door

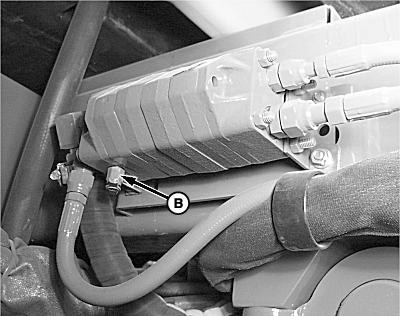

B-Transfer Pump Bleed Screw

N69075
N69755

AG,OUO1011,1734 -19-29MAR06-1/1
