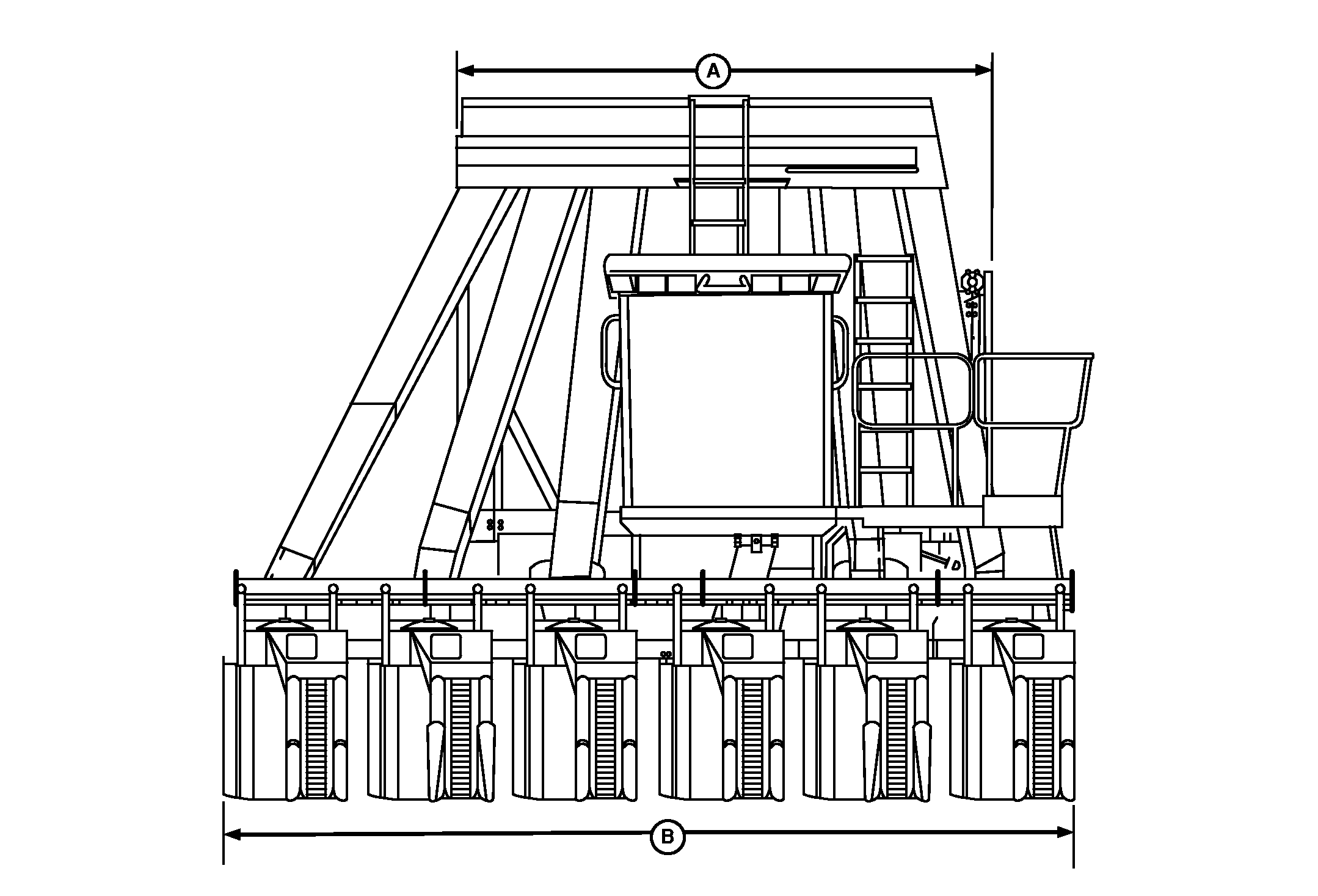

Machine Dimensions
Shown in Raised Position
| | A-3651 mm (143.75 in.)
| B-3810 mm (150 in.) 4 Units on 762 mm (30 in.) Row Spacing
4394 mm (173 in.) 4 Units on 1016 mm (40 in.) Row Spacing
5537 mm (218 in.) 6 Units on 762 mm (30 in.) Row Spacing
5994 mm (236 in.) 6 Units on 1016 mm (40 in.) Row Spacing
|
|
|
|
AG,OUO1011,1753 -19-17MAR05-1/6
|

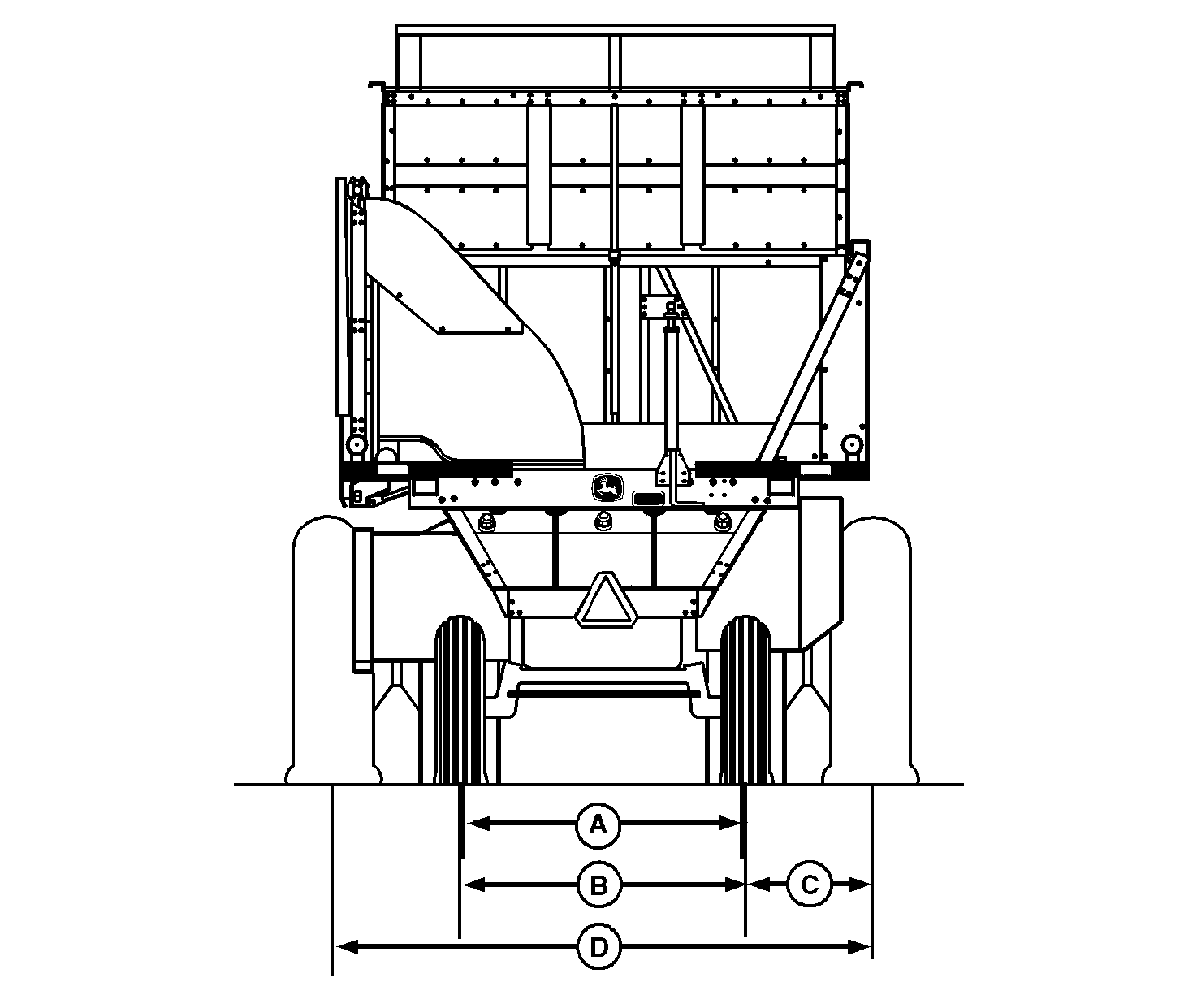

A-Guide Wheel Width From Factory, Center-To-Center Of Tires; 2082 mm (82 in.) Or 2286 mm (90 in.)
|
B-Inner Dual Drive Wheels, 1981 mm (78 in.) Min.
2565 mm (101 in.) Max.
|
C-Dual Wheels With 51 mm (2 in.) Spacer, 813 mm (32 in.)
Dual Wheels With 203 mm (8 in.) Spacer, 965 mm (38 in.)
|
D-Outer Dual Drive Wheel 3607 mm (142 in.) Min.
4191 mm (165 in.) Max.
|
|
|
AG,OUO1011,1753 -19-17MAR05-2/6
|

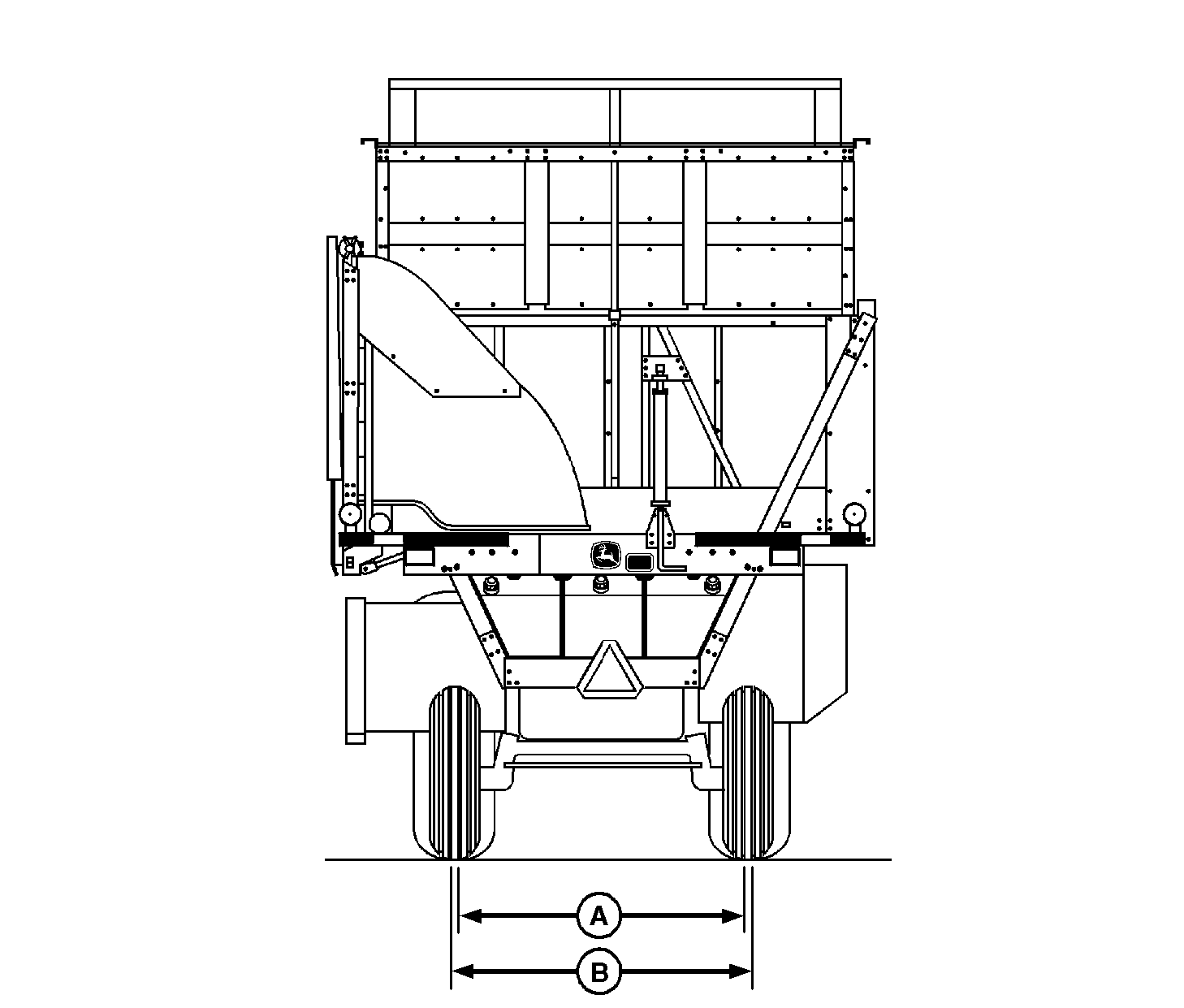

| | A-Guide Wheel Width From Factory, Center-To-Center Of Tires;
2082 or 2286 mm (82 or 90 in.)
| B-Single Drive Wheel Width Center-To-Center Of Tires;
1981 mm (78 in.)
2311 mm (91 in.)
3048 mm (120 in.)
|
|
|
|
AG,OUO1011,1753 -19-17MAR05-3/6
|
A-1638 mm (64.5 in.)
B-2096 mm (82.5 in.)
|
C-1494 mm (58.8 in.)
D-1422 mm (56 in.)
|
E-3505 mm (138 in.)
F-3581 mm (141 in.)
|
G-5004 mm (197 in.)
H-4445 mm (175 in.)
|
|
|
AG,OUO1011,1753 -19-17MAR05-4/6
|

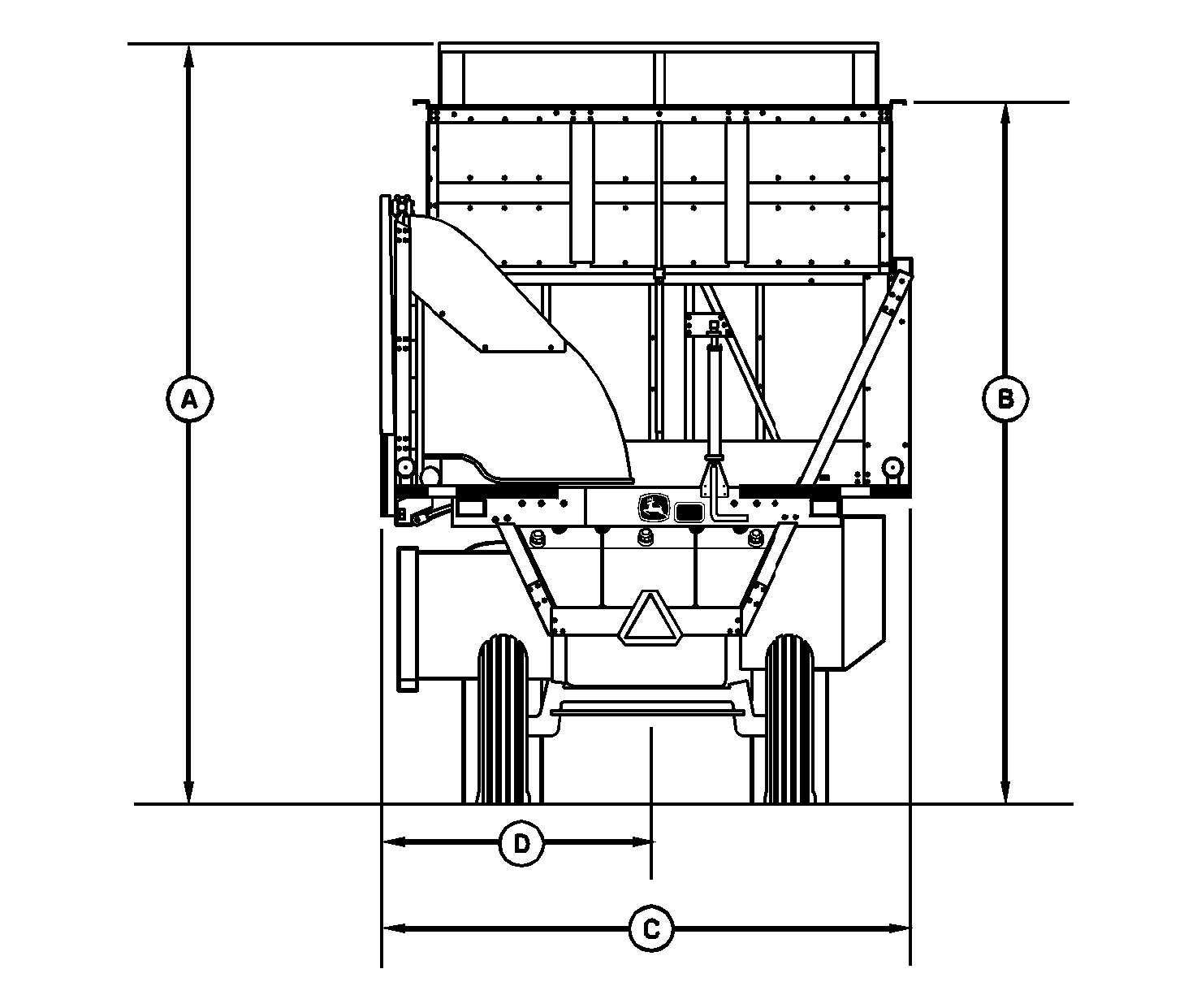

A-5334 mm (210 in.) Full Up Position With Extension Raised
4318 mm (170 in.) Transport Position With Extension Raised
|
B-4851 mm (191 in.) Full Up Position With Extension Lowered
3835 mm (151 in.) Transport Position With Extension Lowered
|
C-3658 mm (144 in.)
|
D-2026 mm (79.75 in.)
|
|
|
AG,OUO1011,1753 -19-17MAR05-5/6
|

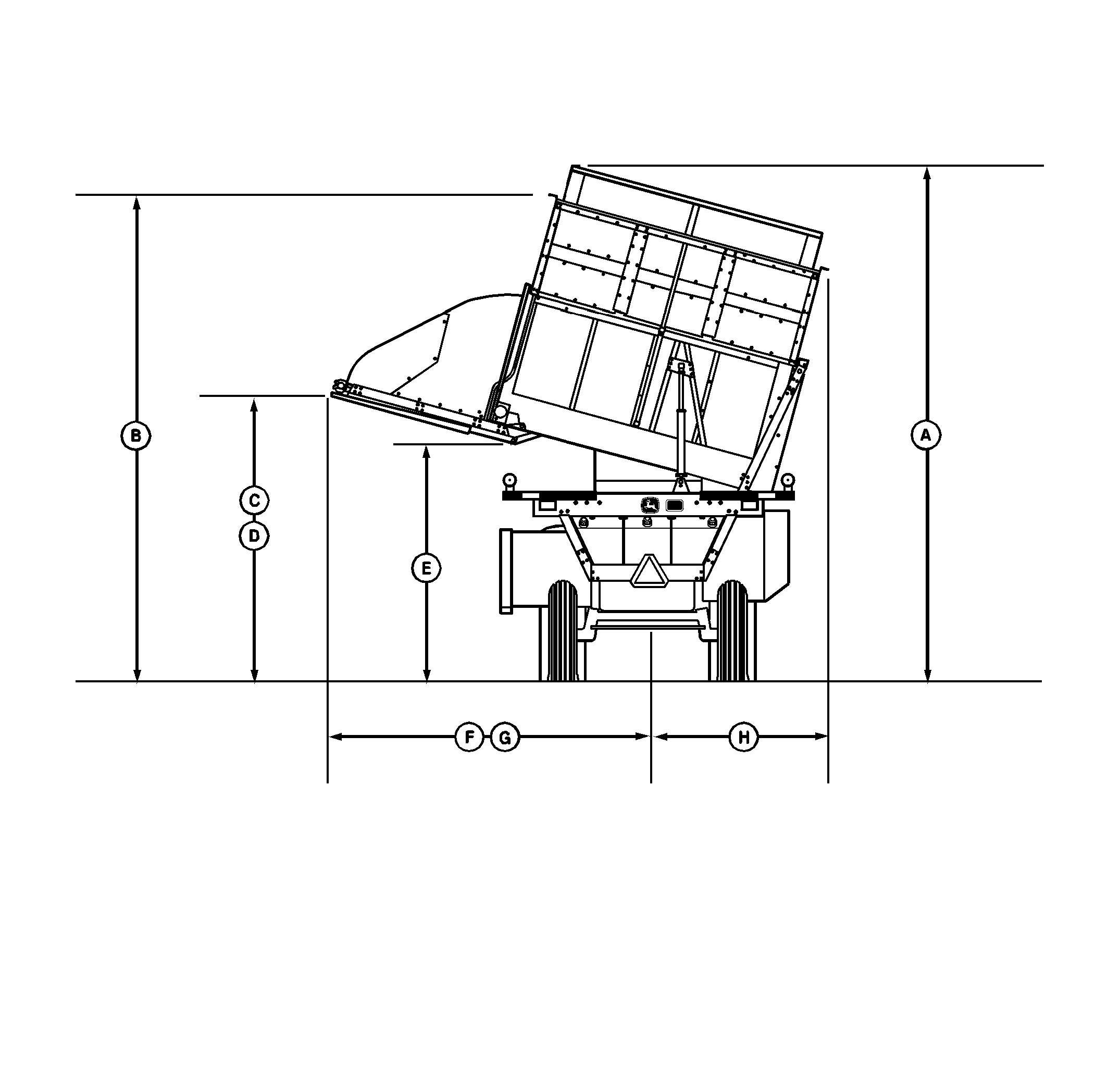

A-6421 mm (252.8 in.)
B-6121 mm (241 in.)
C-4204 mm (165.5 in.) (With Door Extension)
|
D-4006 mm (157.7 in.) (Without Door Extension)
E-3302 mm (130 in.)
|
F-3843 mm (151.3 in.) (With Door Extension)
G-3429 mm (135 in.) (Without Door Extension)
|
H-2316 mm (91.2 in.)
|
|
|
AG,OUO1011,1753 -19-17MAR05-6/6
|
|
