Every 100 Hours of Operation

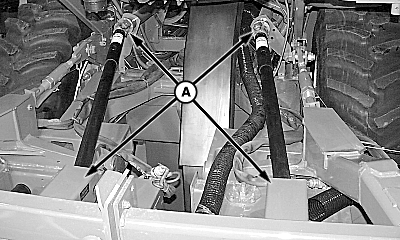

1. Lubricate front and rear universal joints (A) of unit drive shafts.

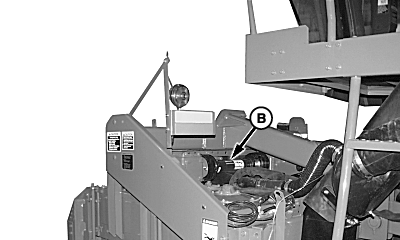

2. Lubricate universal joints and shafts on unit drive cross shafts (B).

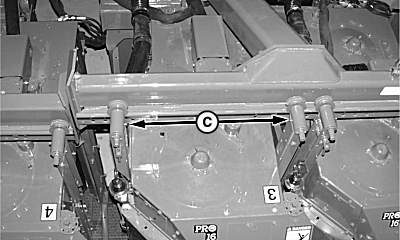

3. Lubricate fittings (C) on unit support frame rollers, (2 per unit).


A-Universal Joints
B-Cross Shafts
C-Fittings

N57236

Some Components Removed For Photo Clarity

N69789
N69788

Viewed From Above

OUO1073,0001A8D -19-20MAY05-1/6

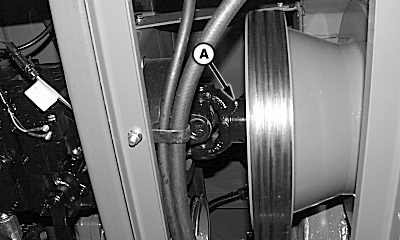

4. Lubricate fitting (A) on hydraulic/hydrostatic driveshaft.


A-Lube Fitting

N57235

Viewed From Below Hydro Module

OUO1073,0001A8D -19-20MAY05-2/6

NOTE: Number of lube fittings on axle couplers will depend on number of row units and spacing.

causym CAUTION: To avoid injury or death to you or others from loss of machine control, do not pump excess grease ( more than two pumps ) into drive couplers nearest brake drums. Over-greasing these couplers can result in grease entering brake drums and reducing braking effectiveness.

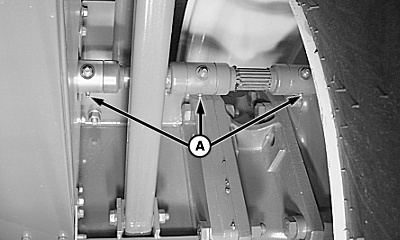

5. Lubricate fittings (A) on final drive axle couplers.

N57233

OUO1073,0001A8D -19-20MAY05-3/6

6. Lubricate final drive external oil seals:

NOTE: Final drive grease fitting is located on edge of final drive next to inside rim of front tires.

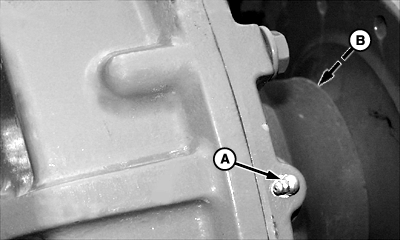

a. Locate final drive lubrication fitting (A).

b. Lubricate final drive outer axle bearing using JDMJ13E4 Severe-Duty (SD) Polyurea Grease UNTIL grease comes out of external oil seal (B).

c. Verify grease has come out around the external oil seal completely by wiping around seal with clean rag.

d. Repeat procedure for other side.

7. Lubricate fitting (B) on final drive outer axle bearings.

N61063


A-Final Drive Lubrication Fitting
B-External Oil Seal

OUO1073,0001A8D -19-20MAY05-4/6

8. Lubricate twelve grease fittings on guide axle.

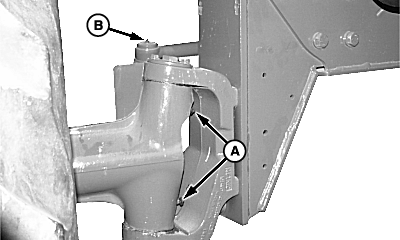

  • Kingpins (A), two grease fittings on each side of machine
  • Steering cylinder ends (B), grease fitting on each side of machine

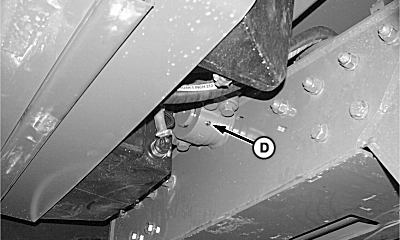

  • Guide axle pivot (D), two grease fittings

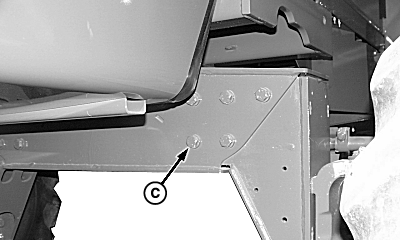

9. Tighten guide axle knee bolts (C) (six on each side of machine) and kingpin screws to specification.

Specification

Guide Axle Knee Bolts -Torque 610 N·m  (450 lb-ft)
Kingpin Screws -Torque 610 N m (450 lb-ft)

10. Tighten drive wheel cap screws to specification.

Specification

Drive Wheel Cap Screws -Torque 610 N·m  (450 lb-ft)

11. Tighten non-powered rear guide axle wheel bolts to specification.

Specification

Non-Powered Guide Wheel Cap Screws -Torque 312 N·m  (230 lb-ft)

12. Tighten power rear guide axle wheel bolts to specification.

Specification

Power Rear Guide Axle Wheel Bolts -Torque 610 N·m  (450 lb-ft)

IMPORTANT: Maintain correct tire pressure to prevent damage to tires. Verify tires are inflated to specifications.

13. Check tires for proper inflation.

N67674
N67675
N69790


A-Kingpin Grease Fittings
B-Steering Cylinder Grease Fittings
C-Guide Axle Knee Bolts
D-Guide Axle Pivot Grease Fittings (2 used)

OUO1073,0001A8D -19-20MAY05-5/6

Tire Size Inflation Pressure
Single Drive Tires 20.8 x 42 14 PR (R1, R2) 290 kPa
(2.9 bar)
(42 psi)
Dual Drive Tires 20.8 x 42 14 PR (R1, R2) 248 kPa
(2.5 bar)
(36 psi)
Steering Tires 480/65R24 283 kPa
(2.8 bar)
(41 psi)
Steering Tires 14.9-24 x 12 PR (R4) 290 kPa
(2.9 bar)
(42 psi)
Power Rear Axle Steering Tires 14.9 x 24 12 PR (R2) 262 kPa
(2.6 bar)
(38 psi)
Power Rear Axle Steering Tires 480/65R24 283 kPa
(2.8 bar)
(41 psi)
