Every 200 Hours of Operation

NOTE: When replacing filter, it should drop easily into place. Do not force it. Verify filter is installed with arrows towards front of machine as shown.

If operating in dusty conditions, primary (recirculating) filter should be cleaned daily.

1. Lift out tray (A). Reach in opening and pull filter (B) out.

2. Clean or replace filter as necessary. (See CLEANING CAB FILTERS in Cab and Air Conditioning section for instructions to clean filter.)


A-Tray
B-Filter

N56520
N56522

OUO1073,0001A9A -19-29MAR06-1/2

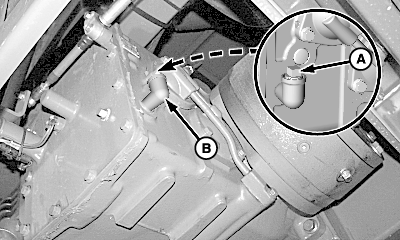

3. Remove plug (A) and check transmission lubricant level. Lubricant should be level with the bottom of plug hole. Add proper lubricant as needed. (See TRANSMISSION AND FINAL DRIVE LUBRICANT in Fuels, Lubricants and Coolants section for proper lubricant specifications.)


A-Plug

N71854

OUO1073,0001A9A -19-29MAR06-2/2
