Check Hydrostatic/Hydraulic Oil Level

For proper check of hydrostatic/hydraulic oil, lower row units and basket. Top of oil level should be visible in oil reservoir sight glass (A). Remove cap (B) and add oil if necessary. (See HYDRAULIC/HYDROSTATIC AND TRANSMISSION/BRAKE OILS in Fuels, Lubricants and Coolants section for proper hydraulic oil specifications.)

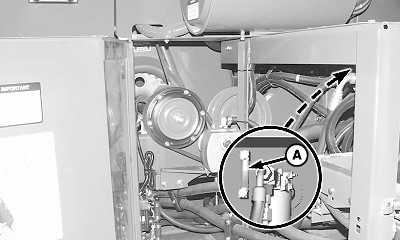

A-Oil Reservoir Sight Glass

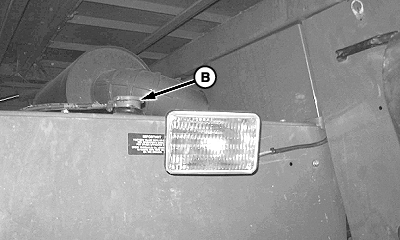

B-Cap

OUO1073,0001A9B -19-20MAR06-1/1
