Rear Wheel Drive Switch (If Equipped)

IMPORTANT: To avoid rear wheel motor and hydro damage, do not engage rear wheel drive above 16 km/h (10 mph).

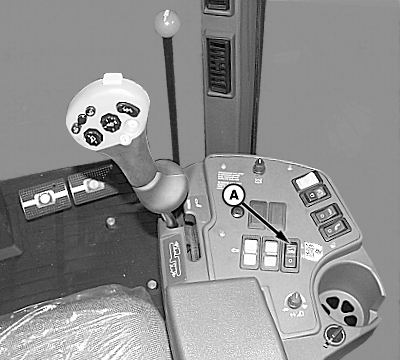

Press top of switch (A) to select high or low range for rear wheel drive if equipped.

Rear wheel drive option switch has two positions;

  • "H" (high) range provides more speed and less torque.
  • "L" (low) range provides less speed and more torque.


A-Switch

N66272

OUO1078,00003C4 -19-20MAR06-1/1
