Replacing Reservoir And Basket Door Lights

Reservoir light (A), basket door light (B), basket light (C), cooling module light (D), basket lights (E and F) are non-serviceable sealed beam lights. Should one of these lights burn out, the entire sealed assembly must be replaced.

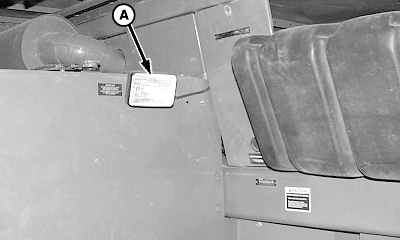

A-Reservoir Light

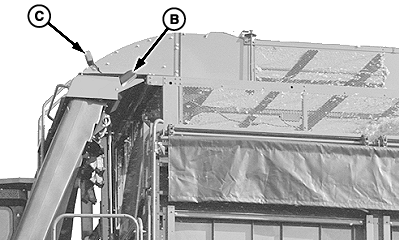

B-Basket Door Light
C-Basket Light, Left-Hand (Forward)

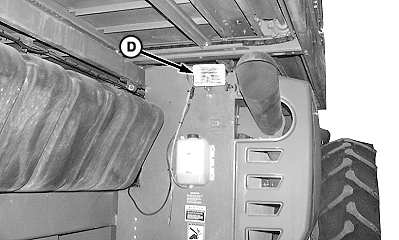

D-Cooling Module Light

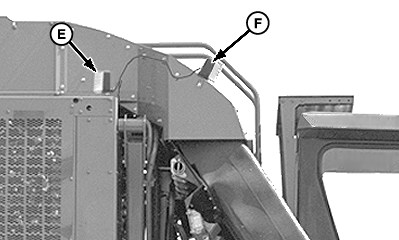

E-Basket Light, Right-Hand (Rearward)
F-Basket Light, Right-Hand (Forward)

OUO1078,00004BF -19-16MAR06-1/1
