Raise Left-Hand Or Right-Hand Units Buttons

These buttons are generally used in the field allowing the operator to raise only one set of row units to clear an obstacle while the opposite set of units remain at the height programed into the header height control system.

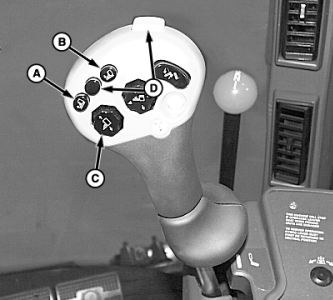

Press and hold left-hand units lift button (A) to lift left-hand units only.

Press and hold right-hand lift units (B) to raise right-hand units only.

Lower units using raise/lower all units button (C).

Buttons (D) are non-functioning.

A-Left-Hand Units Lift Button
B-Right-Hand Units Lift Button
C- Raise/Lower All Units Button
D-Buttons

OUO6043,0000021 -19-26JAN01-1/1
