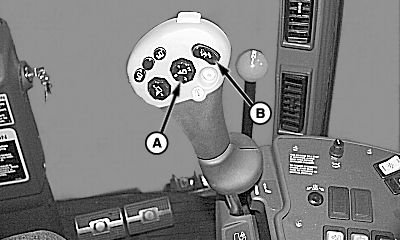

Basket Unload ButtonsNOTE: Position basket and door as needed by pressing and releasing button. Press top of button (A) to raise basket and open basket door. Press top of button (B) to lower basket door as needed without changing position of basket. Press bottom of button (B) to raise/close basket door as needed without changing position of basket. Press left-hand side of button (A) to engage door conveyor only and right-hand side of button to engage both the door conveyor and basket floor conveyor. Press bottom of button (A) to lower basket and bottom of button (B) to raise/close basket door. |
|
OUO6043,0000023 -19-21MAR06-1/1 |
