OMN300523: 9996 Cotton Picker(N09996X020001- ), Block File: OUO6043_000002E_19

NOTE: Throttle switch must be in idle position before fan will engage.

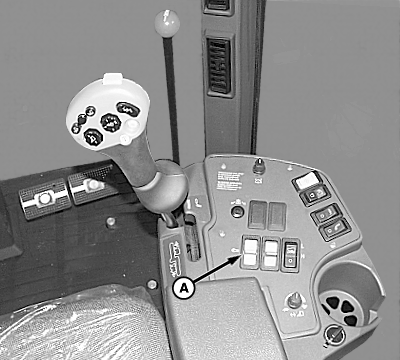

Move fan/units switch (A) to first detent position to engage fan only.

Move switch to second detent position to engage fan and row units.

A-Fan/Units Switch

OUO6043,000002E -19-26JAN01-1/1
