Row Units Height Adjust Knobs

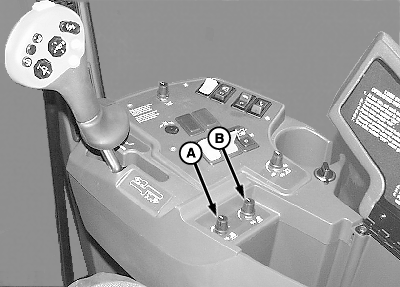

Rotate left-hand units height adjust knob (A) or right-hand units height adjust knob (B) clockwise to raise running height and counterclockwise to lower running height. (See Header Height Control section for details.)


A-Left-Hand Units Height Adjust Knob
B-Right-Hand Units Height Adjust Knob

N57675

OUO6043,000138A -19-20MAR06-1/1
