Header Height Control Response Rate Knob

NOTE: By slowing the responsiveness of the system, row units can run more smoothly in no-till and lake bed conditions.

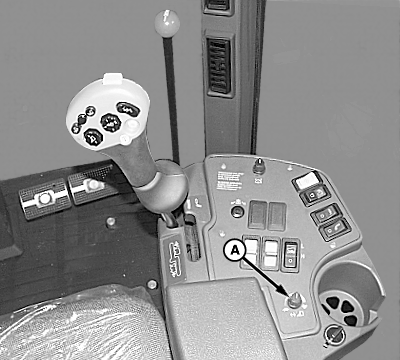

Rotate knob (A) clockwise to speed response time and counterclockwise to slow response time of row units. (See Header Height Control section for details.)

A-Knob

OUO6043,000138C -19-20MAR06-1/1
