Operating Tachometer
To display specific data press switches (A-D) as follows:
-
Machine ground speed, press switch (A).
-
Engine RPM, press switch (B).
-
Solution pressure, press switch (C).
-
Fan speed, press switch (D).
-
Engine hours, press switches (A and B) at the same time.
-
Fan hours, press switches (C and D) at the same time.

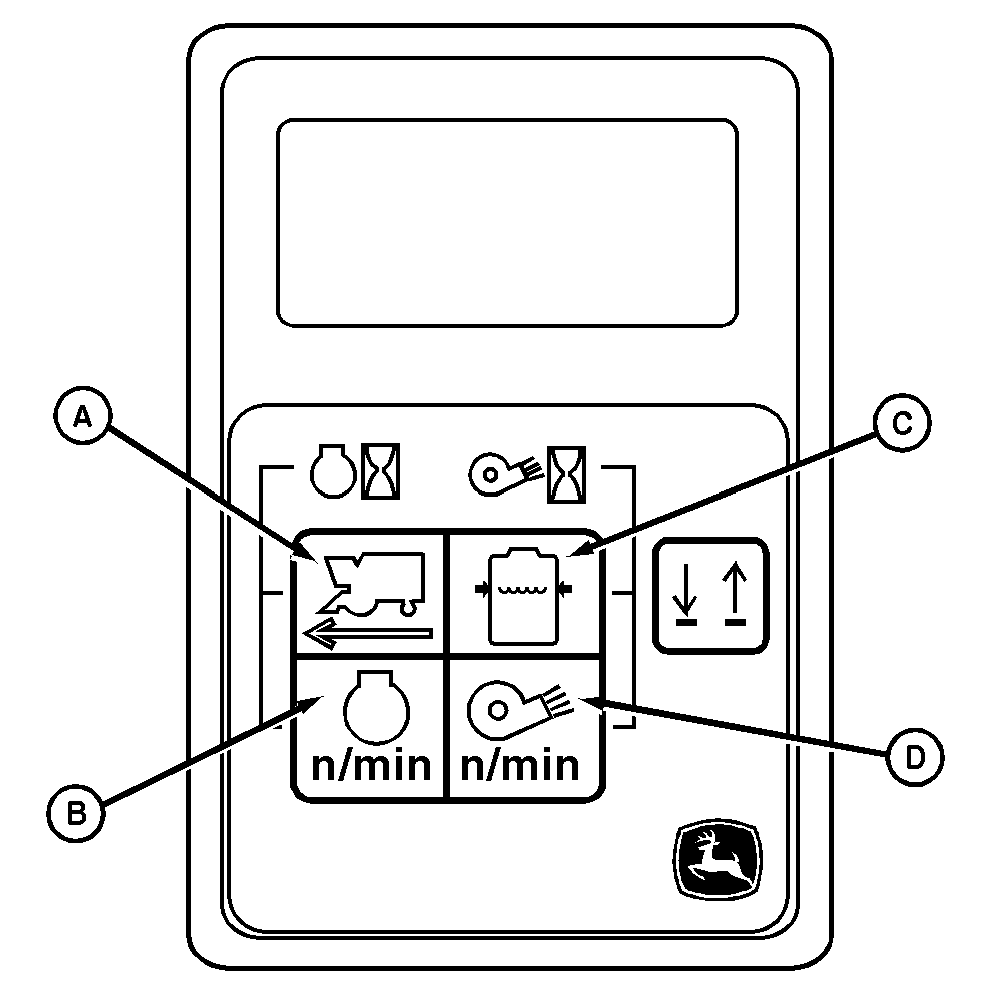

A-Ground Speed Switch
B-Engine RPM Switch
C-Solution Pressure Switch
D-Fan Speed Switch
|
|
