After 20 Hours

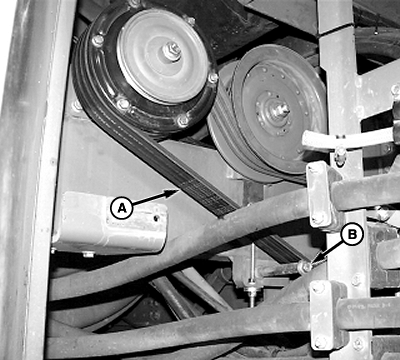

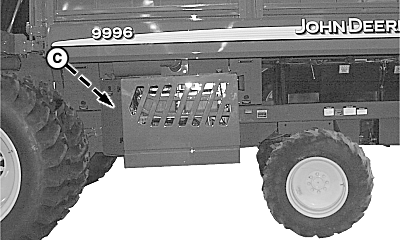

IMPORTANT: Adjust cotton fan drive belt (A) tension and check guide (B) adjustment at location (C). Failure to maintain proper tension will significantly reduce belt life. (See ADJUSTING COTTON FAN BELT AND GUIDES in Air System Section.)

A-Cotton Fan Drive Belt
B-Guide
C-Location

OUO6043,000142D -19-20MAR06-1/1
