Lowering Telescoping Basket And Ducts

1. Place machine on level ground, engage park brake switch and place transmission in neutral.

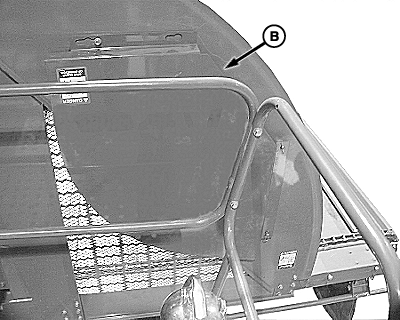

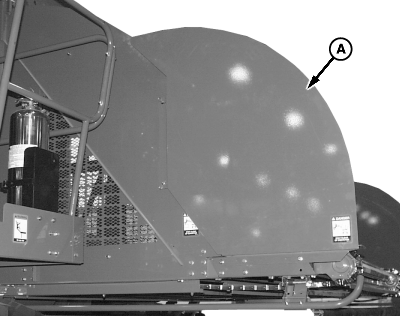

2. If equipped with basket door extension, remove wing extension (A) and place in storage position (B).


A-Wing Extension
B-Storage Position

N67489
N59543

OUO6043,0001443 -19-09MAR05-1/3

3. Start engine and run at idle throttle.

4. Raise basket extension and ducts to maximum height using raise/lower basket extension/ducts switch (A).

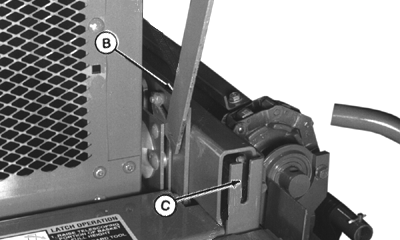

5. Remove onboard tool (B) from storage area (C).

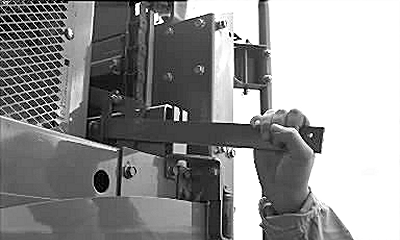

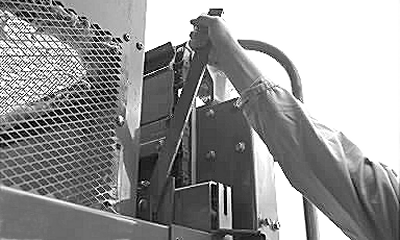

6. Place tool in latch assembly as shown and pull towards front of machine.

7. Remove tool and place back in storage position.


A-Raise/Lower Basket Extension/Ducts Switch
B-Onboard Tool
C-Tool Storage Area

N57668
N42176EJ
N59544
N59545

OUO6043,0001443 -19-09MAR05-2/3

IMPORTANT: Damage to basket or basket cylinders can occur. DO NOT operate machine with basket in any position other than the operating position or fully lowered.

8. Pull down on duct support latch release handle (A).

9. Completely lower ducts and basket extension using raise/lower basket extension/ducts switch (B).


A-Latch Release Handle
B-Raise/Lower Basket Extension/Ducts Switch

N59546
N57677

OUO6043,0001443 -19-09MAR05-3/3
