Static ROW-TRAK Learn

Static ROW-TRAK Learn is to be used where straight rows are not available. Static Learn teaches the machine what is the center of the row, based on one position of the front probe and one position of the guide wheels.

NOTE: Factory or dealer installation includes a Static Learn for initial set up. Performing a Field Learn at the start of the season is recommended. THIS IS NOT a daily operation. (See OPERATING ROW-TRAK in this section for details on when to perform a Learn.)

Perform a diagnostic check of the machine when it is in a stationary position to prepare the machine to harvest curved rows when the Field Learn CANNOT be performed on straight rows. Perform the following steps:

1. Drive machine in a straight line to orient guide tires for procedure. Stop machine on a level surface. Place the transmission lever in neutral, and engage park brake switch.

2. Lower units to harvesting position.

3. Verify guide wheels are pointing straight forward.

4. Center front probe sensor on unit.

5. With fan/units switch (A) engaged and ROW-TRAK on/off switch (B) turned "ON", raise the engine speed above 1800 rpm.

6. Center the offset adjust knob (C).

7. Push and hold the cal/learn switch (D) in calibrate position (push down on the upper half of the switch) until the ROW-TRAK starts beeping slowly (about 2 seconds) and the ROW-TRAK indicator light begins to flash slowly.

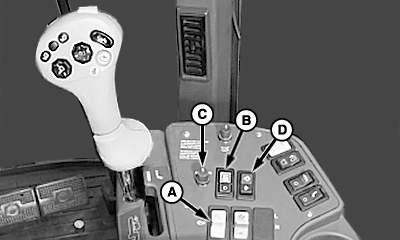

N56995


A-Fan/Units Switch
B-ROW-TRAK On/Off Switch
C-Offset Adjust Knob
D-Cal/Learn Switch

OUO6043,000145F -19-22MAR06-1/2

NOTE: Steering is not required during this diagnostic check procedure.

8. Push ROW-TRAK engage button (A) on hydro lever. The horn will now beep more rapidly for about 45 seconds, and the ROW-TRAK indicator light will flash faster. ROW-TRAK will learn the position of the crop sensor and feedback sensor during this procedure. These learned sensor positions define the straight ahead direction of the guide wheels and the center of the row for the ROW-TRAK controller.

9. The ROW-TRAK will stop beeping fast and horn will sound when it is done learning.

10. If during operation, the machine is not centered on the row, the offset adjust knob can be turned left or right to modify the learn center value and steer the machine properly on the row.

N56993


A-ROW-TRAK Engage Button

OUO6043,000145F -19-22MAR06-2/2
