Performance Channels-1 and 2

Channel 1-"Gain" Parameter

Channel 1 allows adjustment of the "gain" parameter of the ROW-TRAK system. This parameter effects the rate at which the machine responds to movement by the probe and how long it takes to again center the machine on the row. The recommended setting for "gain" is "55." This is also the factory preset setting.

CAUTION: Row units rotate at a high rate of speed and can cause serious injury or death to you or others. Keep hands, feet, and clothing away from units to avoid entanglement.

IMPORTANT: Even a small deviation from this "gain" parameter number can cause the ROW-TRAK system to become unstable. If the "gain" is set too high, system will be over-responsive. Machine will over-shoot row or become "jerky". If "gain" is set too low, system response will be slower and cause machine to "wander" off the row.

Typical operating "gain" range is 50 to 70.

To adjust "gain" parameter:

• Enter calibration mode.
• Enter Channel 1.
• Rotate offset adjust knob (A) to select a new value between 50 and 70. DO NOT adjust "gain" parameter value by more than increments of "2" at a time. After making adjustments be sure to drive machine before making any additional adjustments.
• Once desired setting is reached, press on lower portion of cal/learn switch to store the value in memory.

LOOK/LISTEN: The alarm horn will "beep" twice and tachometer will display a "00". This confirms that a new gain value has been successfully stored.

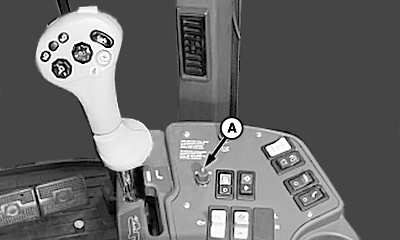

A-Offset Adjust Knob

OUO6043,0001461 -19-22MAR06-1/4

• Exit calibration mode by turning ROW-TRAK on/off switch to Off position . To change channels, push the cal/learn switch in the cal position (push down on the upper half of the switch) and rotate the offset adjust knob to change channels as desired, then release the cal/learn switch.

OUO6043,0001461 -19-22MAR06-2/4

Channel 2-"Ratio" Parameter

Channel 2 allows adjustment of the "ratio" parameter of the ROW-TRAK system. This parameter effects the angle which the guide wheels are turned for a given error. The recommended setting for "ratio" is "12". This is also the factory preset setting.

CAUTION: Row units rotate at a high rate of speed and can cause serious injury or death to you or others. Keep hands, feet, and clothing away from units to avoid entanglement.

IMPORTANT: Even a small deviation from this "ratio" parameter number can cause the ROW-TRAK system to become unstable. If "ratio" is set too high, rear of machine will "jerk back and forth" and rear wheels "over-steer." If "ratio" is set too low wheels will not turn enough and machine will tend to "wander" off the row.

Typical operating "ratio" range is "8" to "18".

To adjust "ratio" parameter:

• Enter calibration mode.
• Enter Channel 2.
• Rotate offset adjust knob (A) to select a new value between 8 and 18. DO NOT adjust "ratio" parameter value by more than increments of "1" at a time. After making adjustments be sure to drive machine before making any additional adjustments.
• Once desired setting is reached, press on lower portion of cal/learn switch to store the value in memory.

LOOK/LISTEN: The alarm horn will "beep" twice and tachometer will display a "00". This confirms that a new gain value has been successfully stored.

A-Offset Adjust Knob

OUO6043,0001461 -19-22MAR06-3/4

• Exit calibration mode by turning ROW-TRAK on/off switch to Off position. To change channels, push the cal/learn switch into the cal position (push down on the upper half of the switch) and rotate the offset adjust knob to change channels as desired, then release the cal/learn switch.

OUO6043,0001461 -19-22MAR06-4/4
