Unit Monitor Display Functions

IMPORTANT: If a row unit indicator lights and alarm sounds for any of the following conditions, stop machine immediately, disengage units and determine cause.

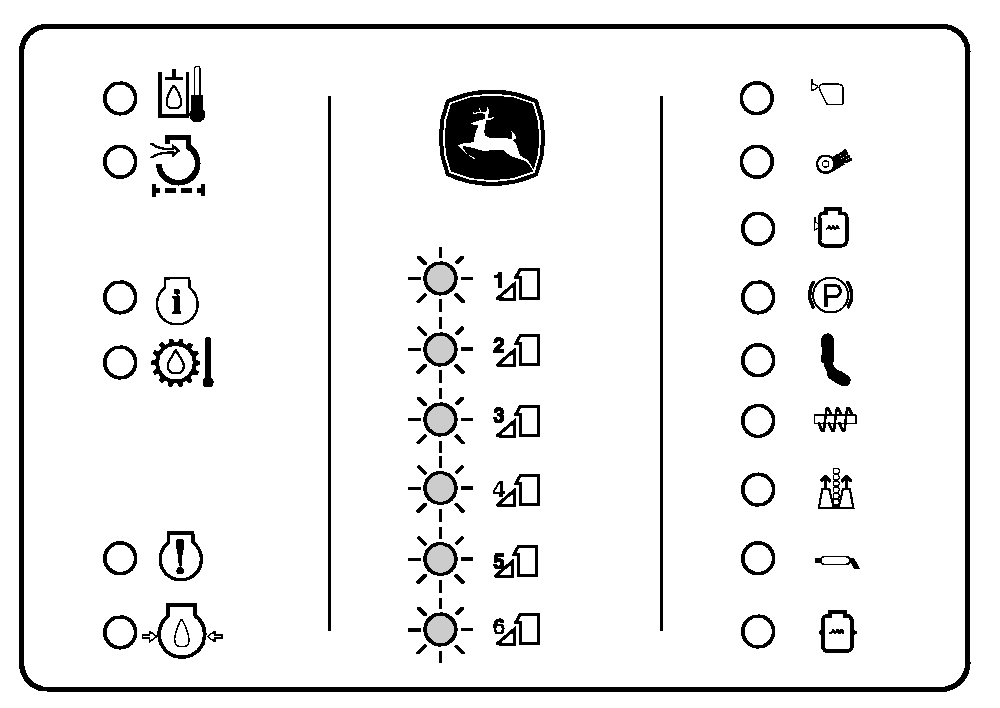

ROW UNIT monitor display indicators will inform the operator of following:

• Unit drive idler clutch slippage
• Main unit clutch slippage
• Restricted suction door or duct
• Abnormal unit speed
• Abnormal onboard lubrication speed
