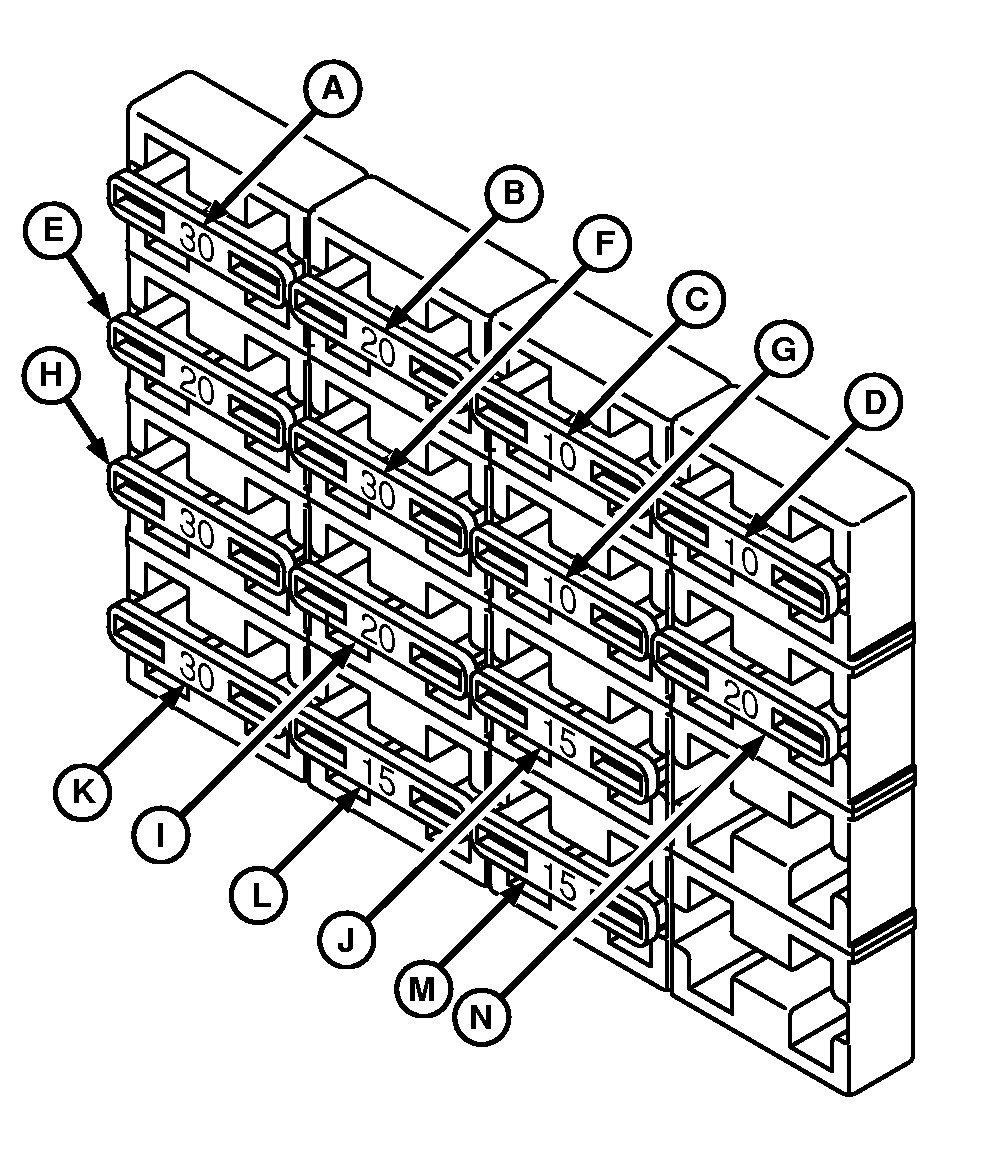

Hydro Module Fuses
NOTE:
These fuses are located in hydro module.
A-Hydraulic Valves
B-Engine Controller
C-Battery Power
D-Vehicle Controller
E-12V Battery
F-Basket/Service Lights
G-Accessory Power
H-Key Switch
I-Road/Tail Lights
J-Pressurizer Motor
K-Recirculating Motor
L-Field Lights
M-Turn Signal/Warning Lights
N-Basket Lights
|
