Replacing Tail Light Bulbs

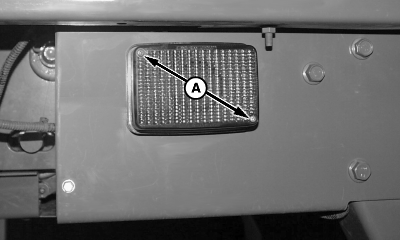

1. Remove cap screws (A) and cover.

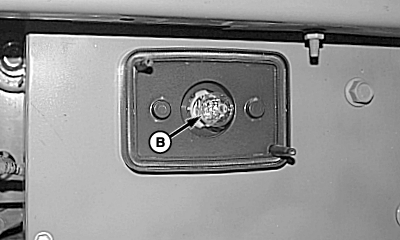

2. Pull bulb (B) from socket and replace. (See BULB PART NUMBERS in this section for proper replacement.)

3. Install cover.


A-Cap Screws
B-Bulb

N56454
N56455

OUO6043,000148F -19-16MAR06-1/1
