Preparing Machine for Storage

If machine will not be operated for 30 days or more:

2. Clean spindles.

IMPORTANT: Lubricate row units thoroughly after washing to protect against corrosion.

3. Wash row units thoroughly, inside and outside. Make sure they are thoroughly dry. Spray entire picking mechanism with a rust-preventive oil.

4. Lubricate machine completely. Grease threads on bolts used for adjustments. Run row units until all parts are thoroughly lubricated.

OUO6043,00014A5 -19-22MAR06-1/3

IMPORTANT: Solution pump damage can occur if pump is operated without water in system.

NOTE: Refer to decal on inside of door for procedures on maintaining moistener system.

5. Drain and refill moistener system:

a. Drain moistener system tank and lines by removing strainer (C), opening valve (B), drain valve on valve assembly (D), and drain valve on pump (A). Replace strainers and close drain valves.

b. Following manufacturer's directions, mix RV antifreeze (environmentally safe antifreeze) at the correct ratio to protect moistener system down to lowest expected temperature.

c. Pour appropriate mixture of RV antifreeze into moistener system tank. Operate system to circulate antifreeze through lines and nozzles.

d. Remove solution pump belt.

6. Repaint where necessary.

7. Support row units with blocks.

8. Block machine to take load off tires. Do not deflate tires. If machine is stored outside, remove wheels and tires and store them in a cool, dark place. Do not store tires in contact with blacktop or other oil stabilized surfaces.

9. Loosen all belts.

10. Clean oil cooler.

11. Order repair parts for next season.

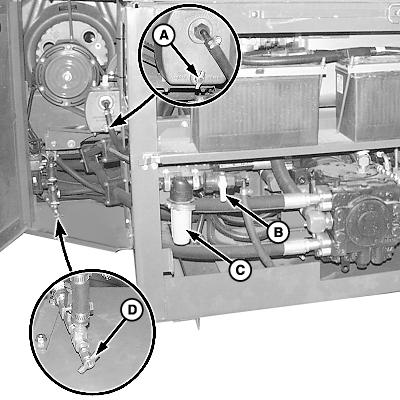

A-Drain Valve on Pump
B-Valve
C-Strainer
D-Drain Valve on Valve Assembly

OUO6043,00014A5 -19-22MAR06-2/3

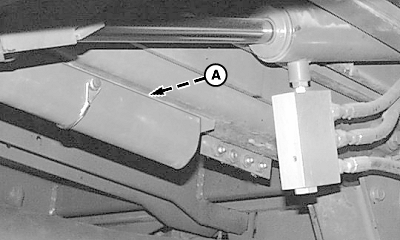

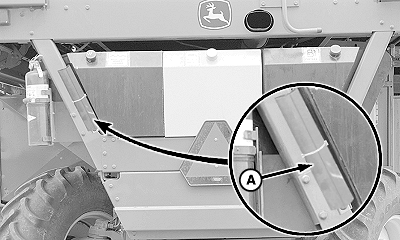

A-Storage Positions

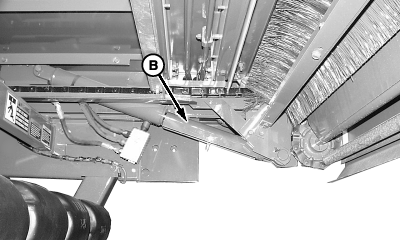

B-Rear Basket Door Cylinder-Stop Installed

OUO6043,00014A5 -19-22MAR06-3/3
