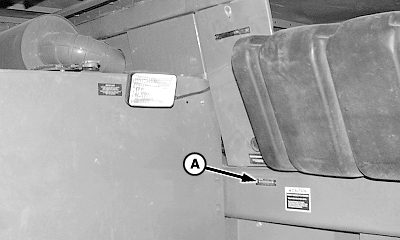

Record Product ID and Component Serial NumbersMachine product identification number (A) is on left-hand mainframe. Record it in the space provided. Identification Number _________________________
|
|
OUO6043,00014A7 -19-29MAR06-1/9 |
|

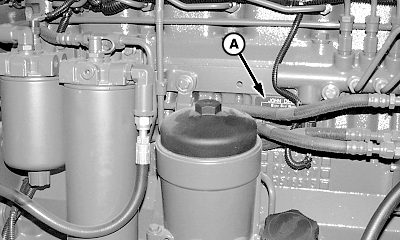

The engine serial number (A) is on the side of the engine block. Record it below. Engine Serial Number _________________________
|
|
OUO6043,00014A7 -19-29MAR06-2/9 |
|

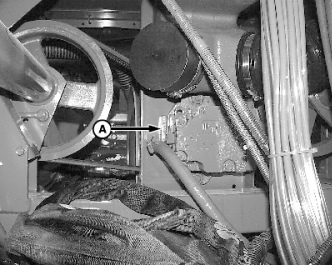

The unit drive hydrostatic motor serial number (A) is located on top of the motor. Record it below. Motor Serial Number __________________________
|
|
OUO6043,00014A7 -19-29MAR06-3/9 |
|

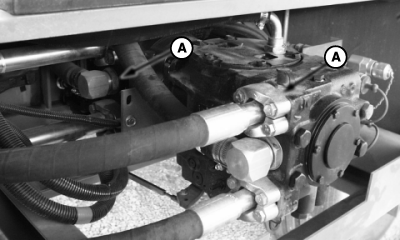

The hydrostatic pumps serial numbers (A) are on front ported side of pump. Propel Pump Serial Number ___________________________ Unit Pump Serial Number_____________________________
|
|
OUO6043,00014A7 -19-29MAR06-4/9 |
|

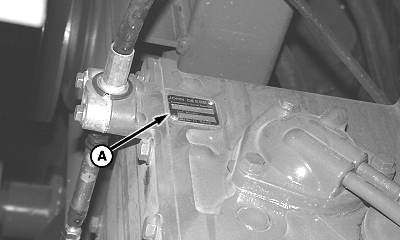

The propel hydrostatic motor serial number (A) is located on the front side of the propel motor. Propel Motor Serial Number____________________________
|
|
OUO6043,00014A7 -19-29MAR06-5/9 |
|

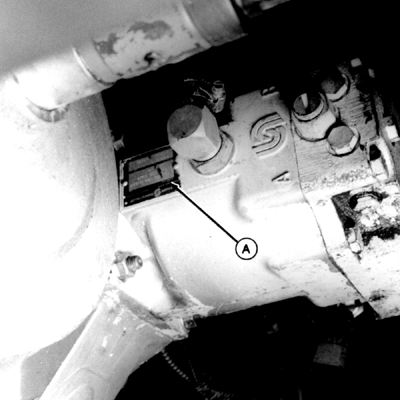

The transmission serial number (A) is located on the left-hand side of the transmission case. Transmission Serial Number____________________________
|
|
OUO6043,00014A7 -19-29MAR06-6/9 |
|

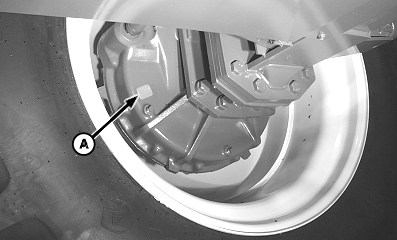

The final drive serial number (A) is located above drain plug on final drive case. Left-Hand Final Drive Serial Number____________________________ Right-Hand Final Drive Serial Number____________________________
|
|
OUO6043,00014A7 -19-29MAR06-7/9 |
|
Cab serial number (A) is on the right-hand lower rear cab corner. Record it below. Cab Serial Number ___________________________
|
|
OUO6043,00014A7 -19-29MAR06-8/9 |
|

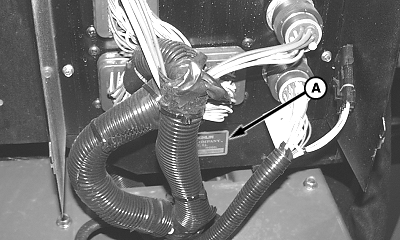

Controller serial numbers are located on the back of the housing. Record below or in the spaces provided. Engine Controller Serial Number________________________ Vehicle Controller Serial Number________________________ ROW-TRAK Controller (Optional) Serial Number________________________ |
|
OUO6043,00014A7 -19-29MAR06-9/9 |
