Adjusting Toe-In (Powered and Non-Powered Rear Axle)

With steering wheels straight ahead, loosen clamp cap screw (A) on both sides of steering cylinder. Turn both tie rod joints (B) equally until front of wheels toe-in to specification.

Specification

Toe-In --Rear-Front Dimension 13 ± 9.5 mm (0.50 ± 0.38 in.)

Tighten nuts on clamp bolts to specification.

Specification

Tie Rod Clamp Cap Screw -Torque 75 N·m (55 lb-ft)

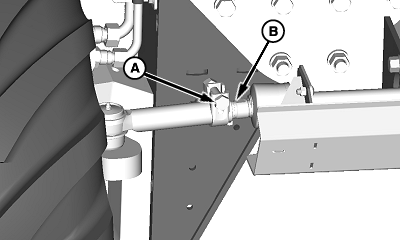

N66229


A-Clamp Cap Screw
B-Tie Rod

RS69585,000000E -19-25OCT06-1/1
