Flushing 30 and 60 Micron Filter (If Equipped)

1. Turn off engine.

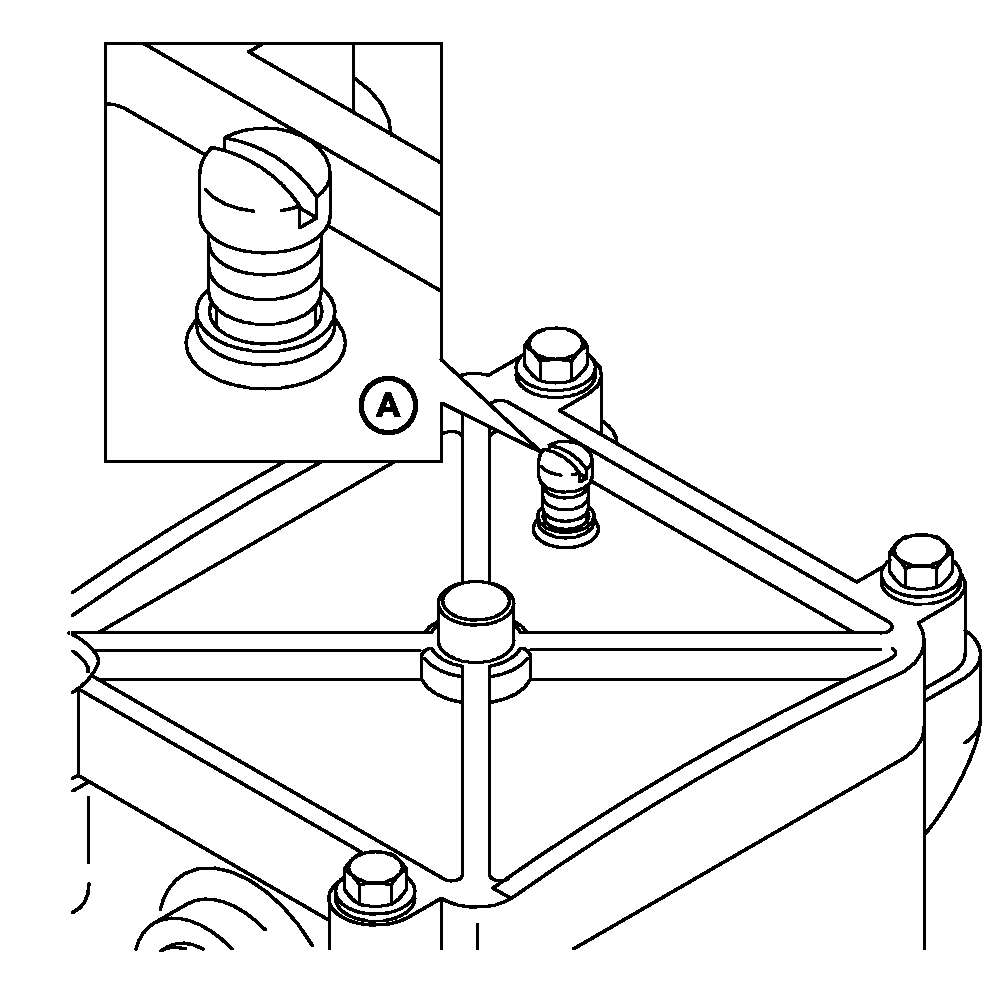

2. Open bleed screw (A). This will relieve vacuum in filter and allow water and particulate matter to be released from filter element.


A-Bleed Screw

N74239

30/60 Micron Filter

N73205

RS69585,0000016 -19-08NOV06-1/3

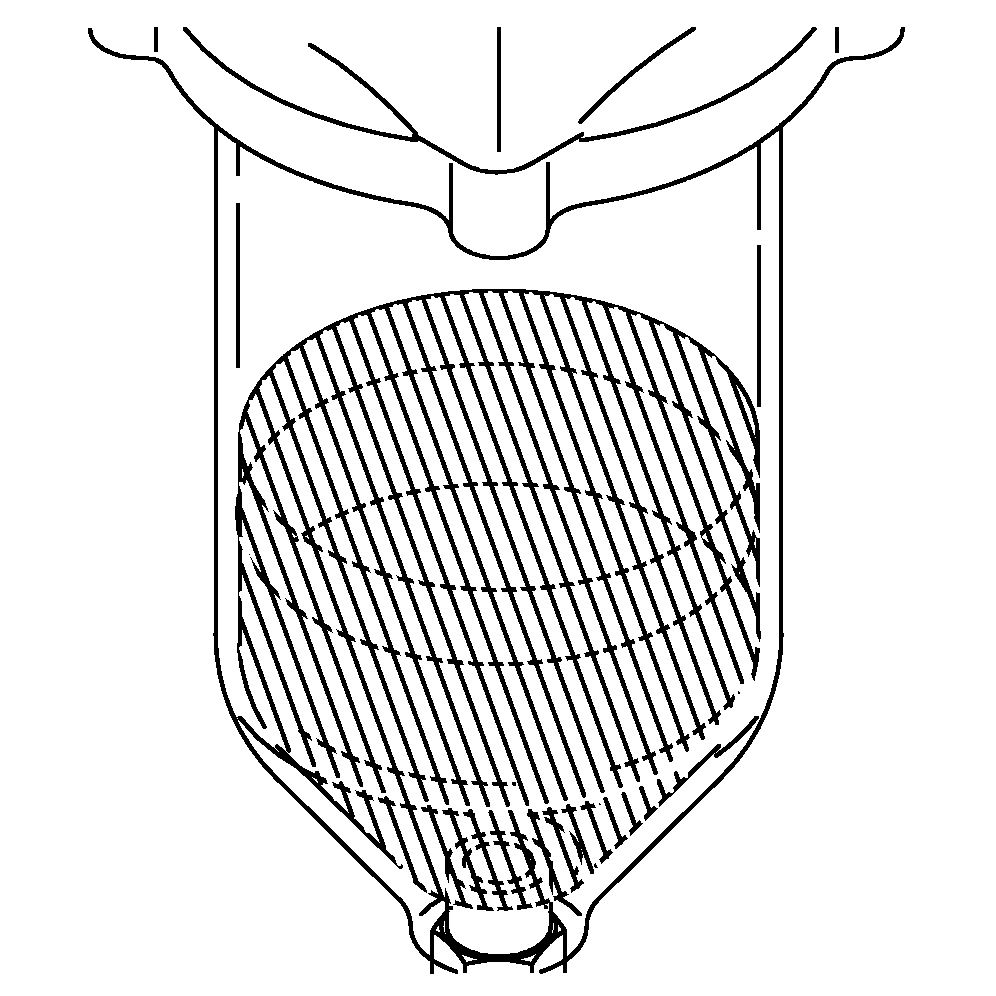

3. Allow water and particulate matter to settle to bottom of bowl.

4. Push in and turn drain valve to drain water and particulate matter into a proper container for disposal.

5. Close drain valve.

6. As water and particulate matter is drained from bowl, more water and particulate matter may be flushed from filter. If necessary, open valve again to drain water and particulate matter, close valve.

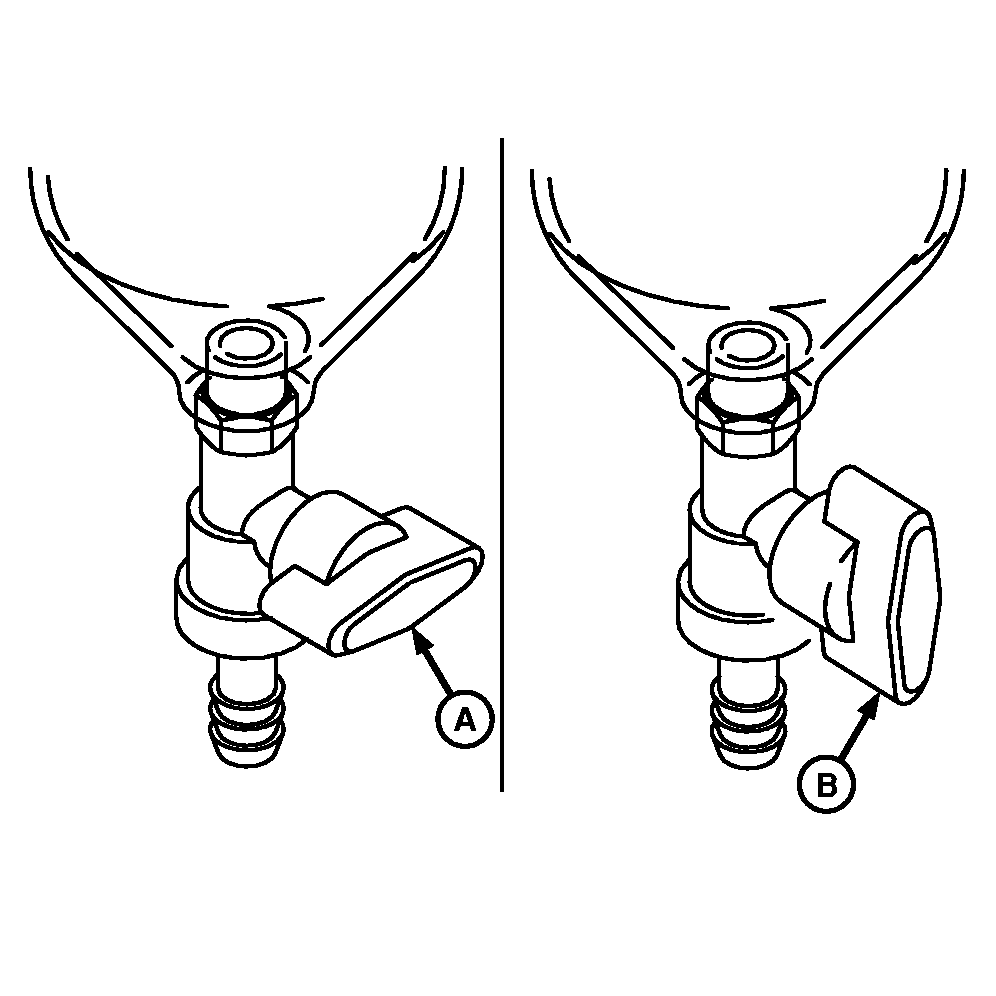

A-Drain Valve (Closed Position)
B-Drain Valve (Open Position)

N72821
N72822

RS69585,0000016 -19-08NOV06-2/3

7. Prime filter and close bleed screw (A).


A-Bleed Screw

N73205

RS69585,0000016 -19-08NOV06-3/3
