Attaching Lift Bracket

causym CAUTION: Avoid injury from a falling machine while jacking. Lift and support empty machine only. Only jack wheels using supplied lift bracket and support machine using John Deere JT07365 shop stand or equivalent.

Before jacking a front wheel, turn it fully outward.

1. Empty solution tank (if necessary).

2. Remove lift bracket from storage position (A) on right-hand front frame rail.

3. Remove wheel shield and motor shield (if equipped).

4. Attach lift bracket to machine in a horizontal position as shown with M16 x 80 cap screws (B) pointing toward rear of machine and flange nuts on inside of casting. Tighten nuts.

5. Place a floor jack or bottle jack under lift bracket and lift machine as required.

N53964

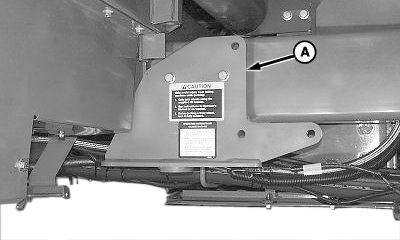

Storage Position

N53965

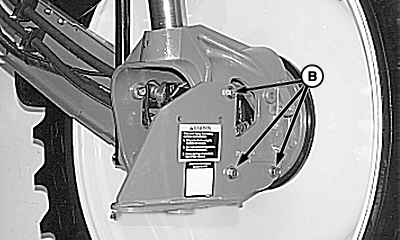

Lifting Position


A-Storage Position
B-Cap Screws, M16 x 80

AG,OUO1011,804 -19-26MAR04-1/2

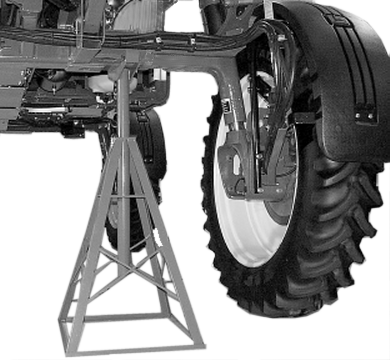

6. Support machine using John Deere JT07365 shop stand or equivalent on axle as shown.

7. When finished using lift bracket, remove bracket and hardware. Install wheel shield and motor shields.

8. Return lift bracket to storage position.

N55262

AG,OUO1011,804 -19-26MAR04-2/2
