Checking Side Gap on Axle Tread Adjustment

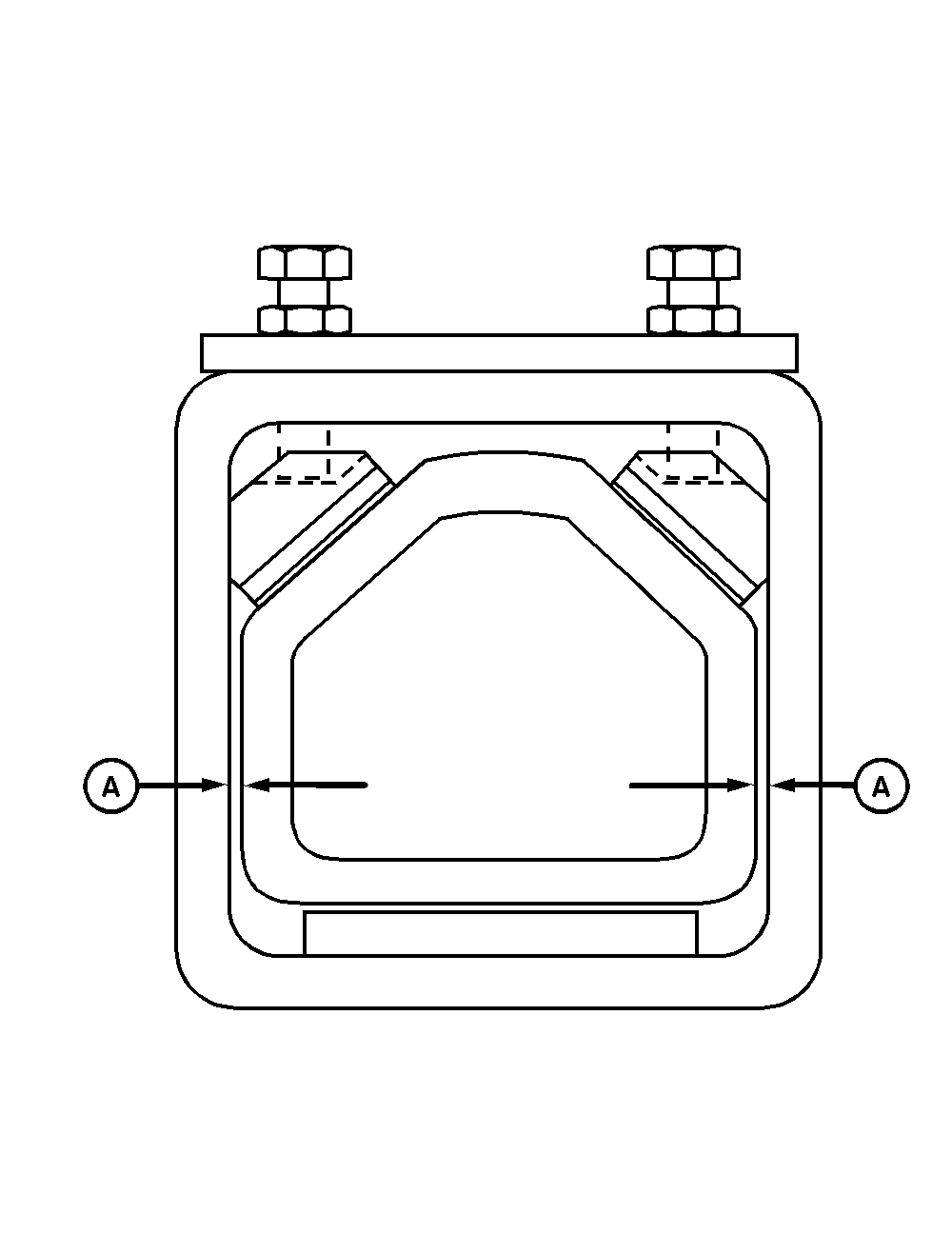

Measure gap (A) between mainframe axle tube and knee casting at both front and rear sides of axle tube. Both gaps should be equal.

If knee casting is centered in mainframe tube, proceed to ADJUSTING SHIM GAP in this section.

If knee casting is not centered in mainframe tube, proceed to ADJUSTING SIDE GAP ON AXLE TREAD ADJUST in this section.

A-Gap
