Replacing Fuses

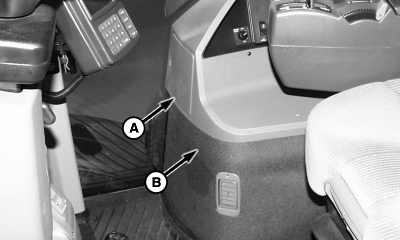

Remove cover to access fuse panel (A).

Remove upholstery (B) from side console to access relays.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse plus fuses are color coded to ensure proper replacement.

Fuse Rating Color
3 Amp Purple
5 Amp Brown
10 Amp Red
15 Amp Blue
20 Amp Yellow
25 Amp Clear
30 Amp Green



IMPORTANT: Do not replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

N64755


A-Fuse Panel
B-Upholstery

AG,OUO1011,824 -19-26MAR04-1/1
