Aligning Intermediate and Outer Boom Sections

1. Unfold boom into operating (spraying) position.

2. Adjust stop bolts (A) in or out to align boom sections.

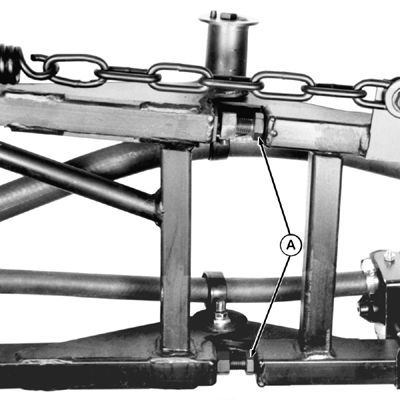

A-Stop Bolts
