Adjusting Floating Frame Pivot

1. Park machine on level surface.

2. Lubricate pivot linkage (see Lubrication And Maintenance 60 Ft . Boom).

3. Grease skid plates (see Lubrication And Maintenance 60 Ft . Boom).

4. Manually lift one outer boom end approximately 508 mm (20 in.) above horizontal.

5. Release boom end. Boom should smoothly return to horizontal or near horizontal position.

AG,OUO1011,886 -19-26JUL99-1/2

6. If boom does not return to horizontal, loosen each of the adjustment cap screws (A) 1/2 turn and check again.

If boom pivots too freely, tighten adjustment cap screws 1/2 turn and check again.

Boom is properly adjusted when it returns to horizontal position under its own weight, without binding.

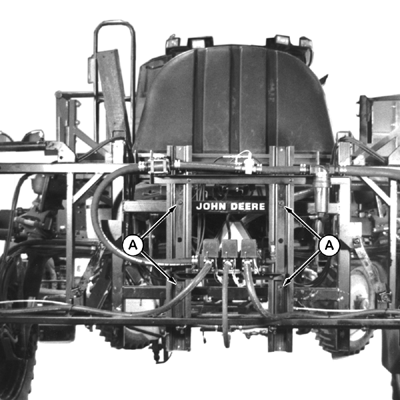

A-Adjustment Cap Screws

N42190Z

AG,OUO1011,886 -19-26JUL99-2/2
