Installing Drop Nozzles
1.
Install drop brackets (A) to backside of boom, using clamps. Adjust brackets for desired spacing, before tightening clamps.
A-Drop Brackets
|
|
|
|
AG,OUO1011,891 -19-27JUL99-1/4
|
|
2.

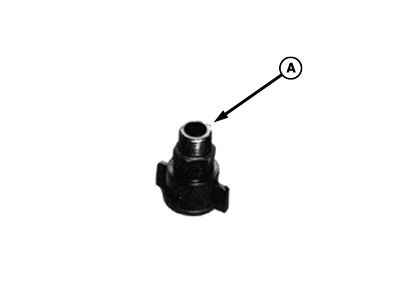

Remove nozzle tip cap from closest nozzle body and attach appropriate SPRAY MASTER threaded fitting (A) using old sealing washer from cap.
A-SPRAY MASTER Threaded Fitting
|
|
|
|
AG,OUO1011,891 -19-27JUL99-2/4
|
|
3.
Place drop nozzle tubes (A) on brackets and retain with clips.
4.
Attach connecting hoses (B) to drop nozzle tube and threaded fitting on nozzle with clear colored O-rings installed in end fittings.
A-Drop Nozzle Tubes
B-Connecting Hoses
|
|
|
|
AG,OUO1011,891 -19-27JUL99-3/4
|
|
5.
Close off unused SPRAY MASTER nozzle bodies.

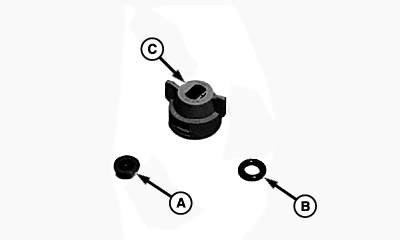

For single nozzle body, use blank (A) or flat blank disks (see service parts), sealing washer (B), and cap (C).
For triplet nozzle body, rotate to close.
A-Blank
B-Sealing Washer
C-Cap
|
|
|
|
